Smooth lighting no longer works properly in certain block configurations

NOTE: the following fix pertains to 1.7, an updated version will be needed for 1.16+

Let me first off say that I know this is a duplicate, but I have code-fixes for it.

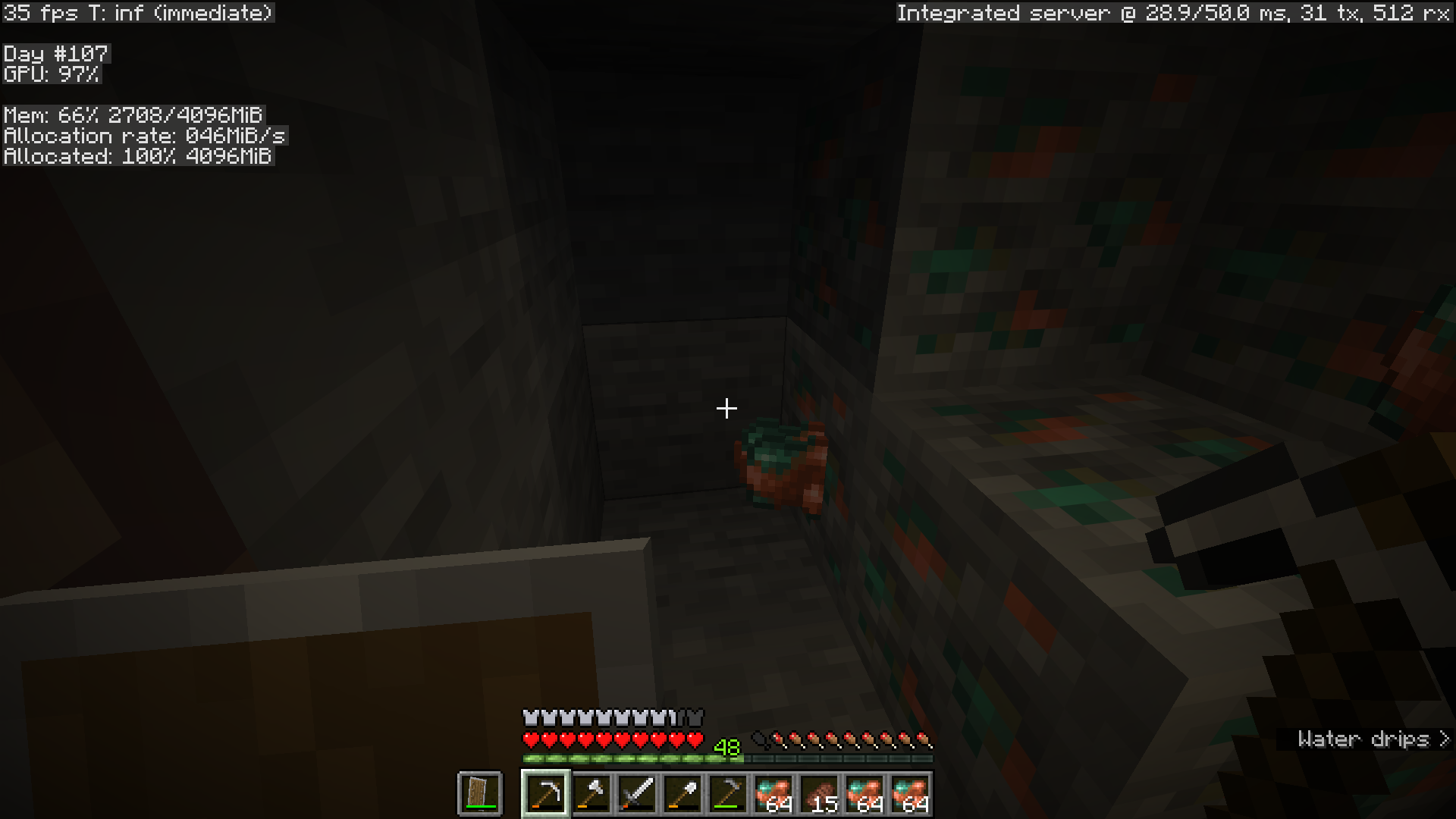

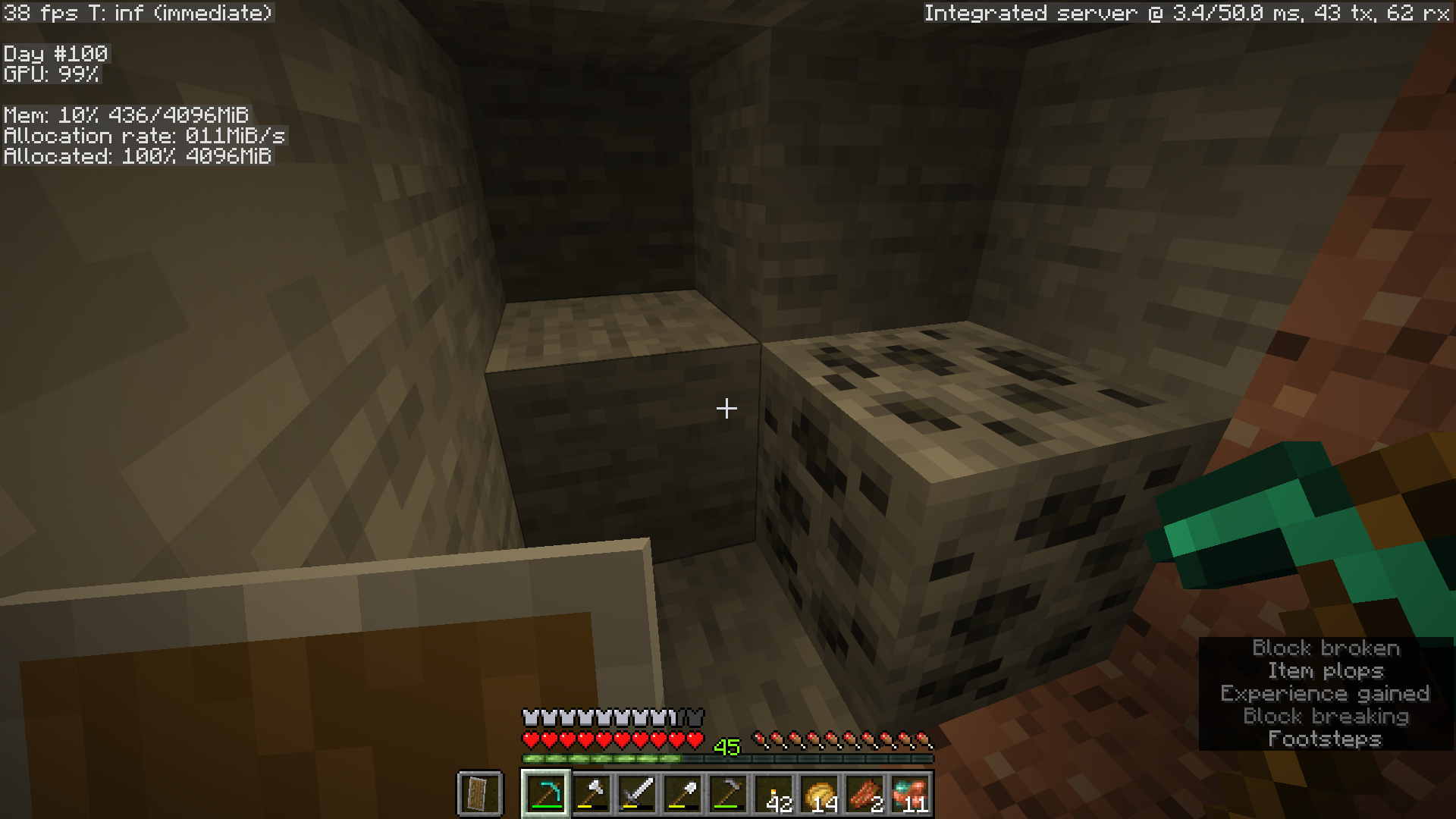

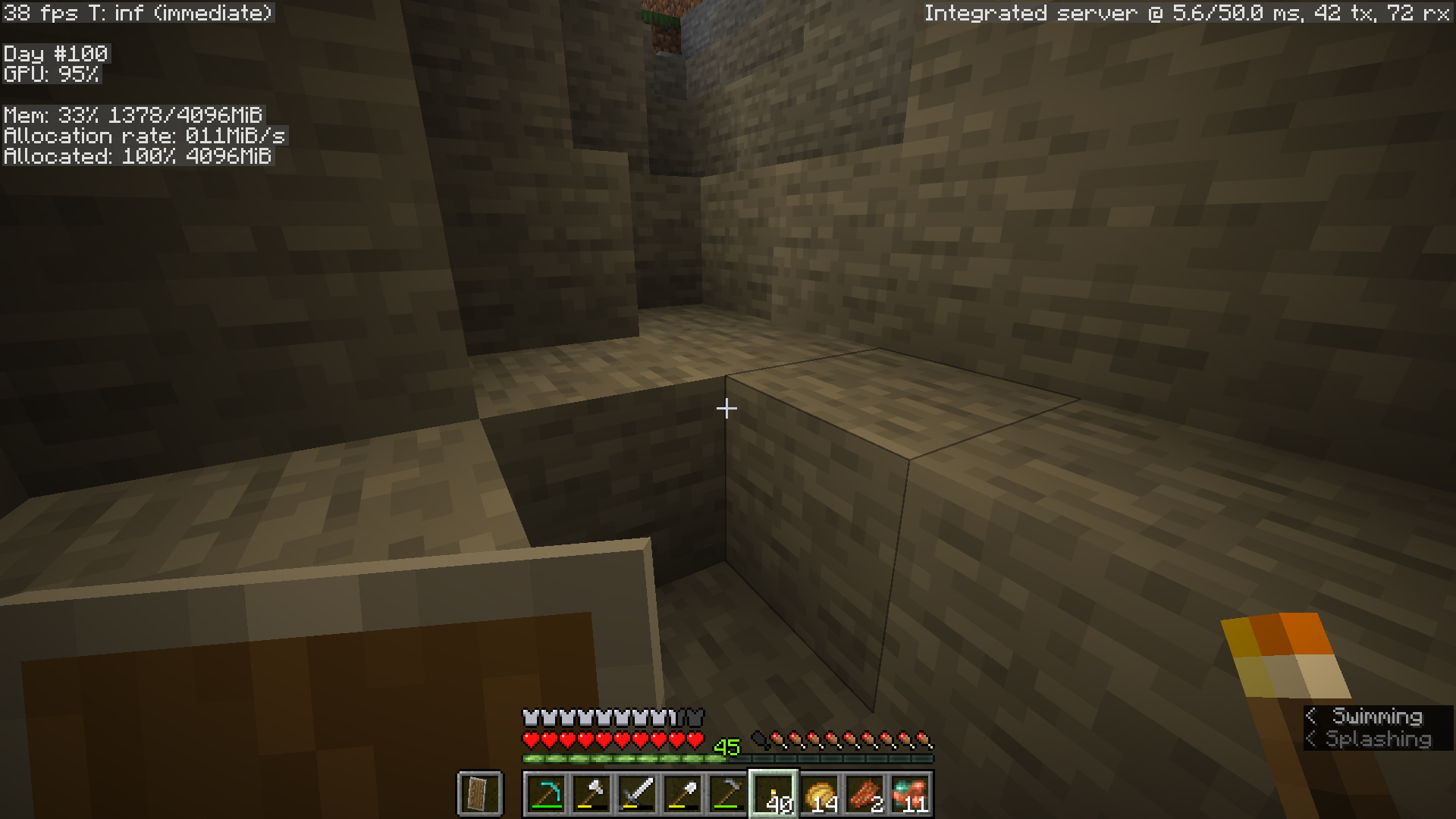

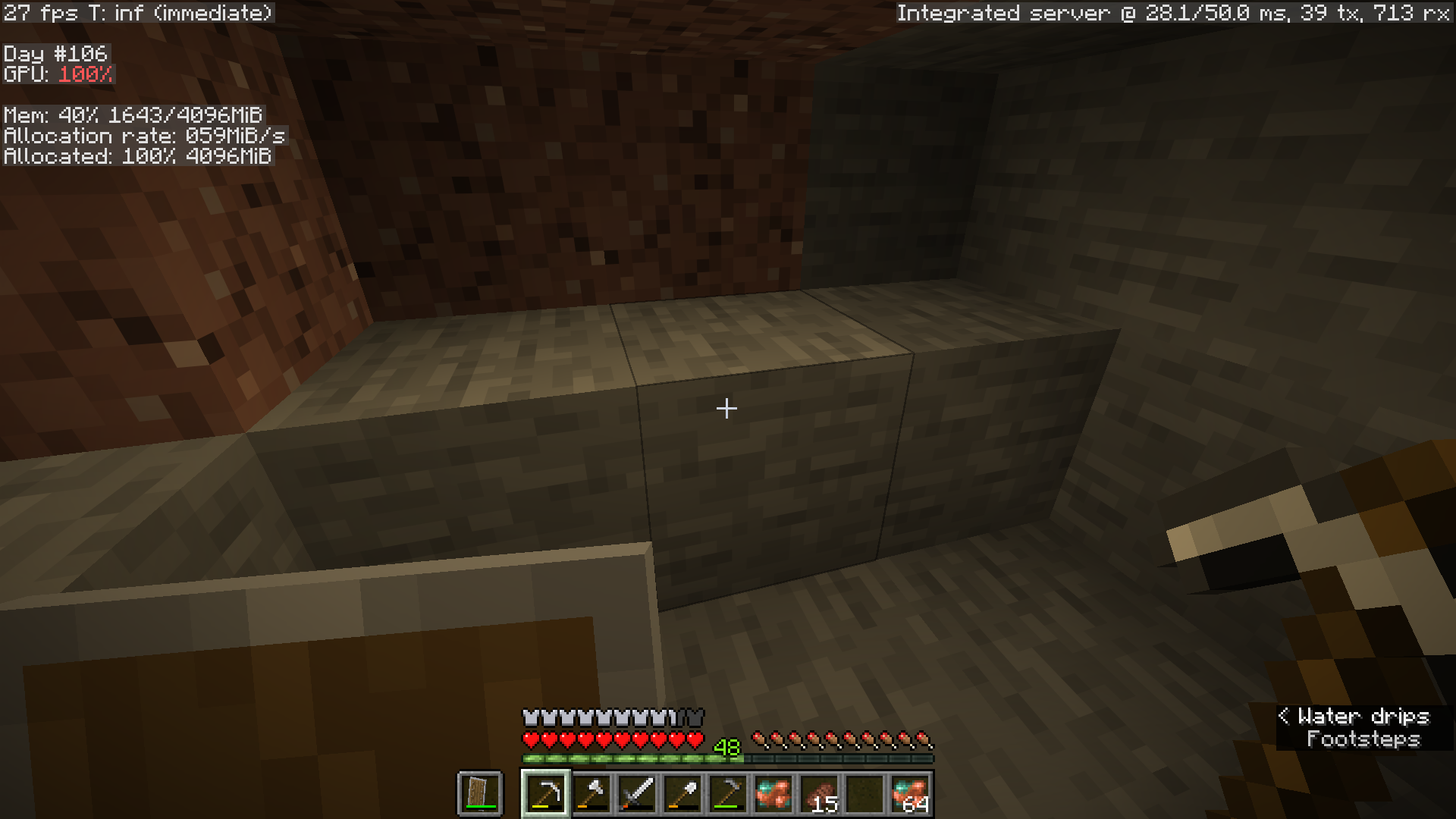

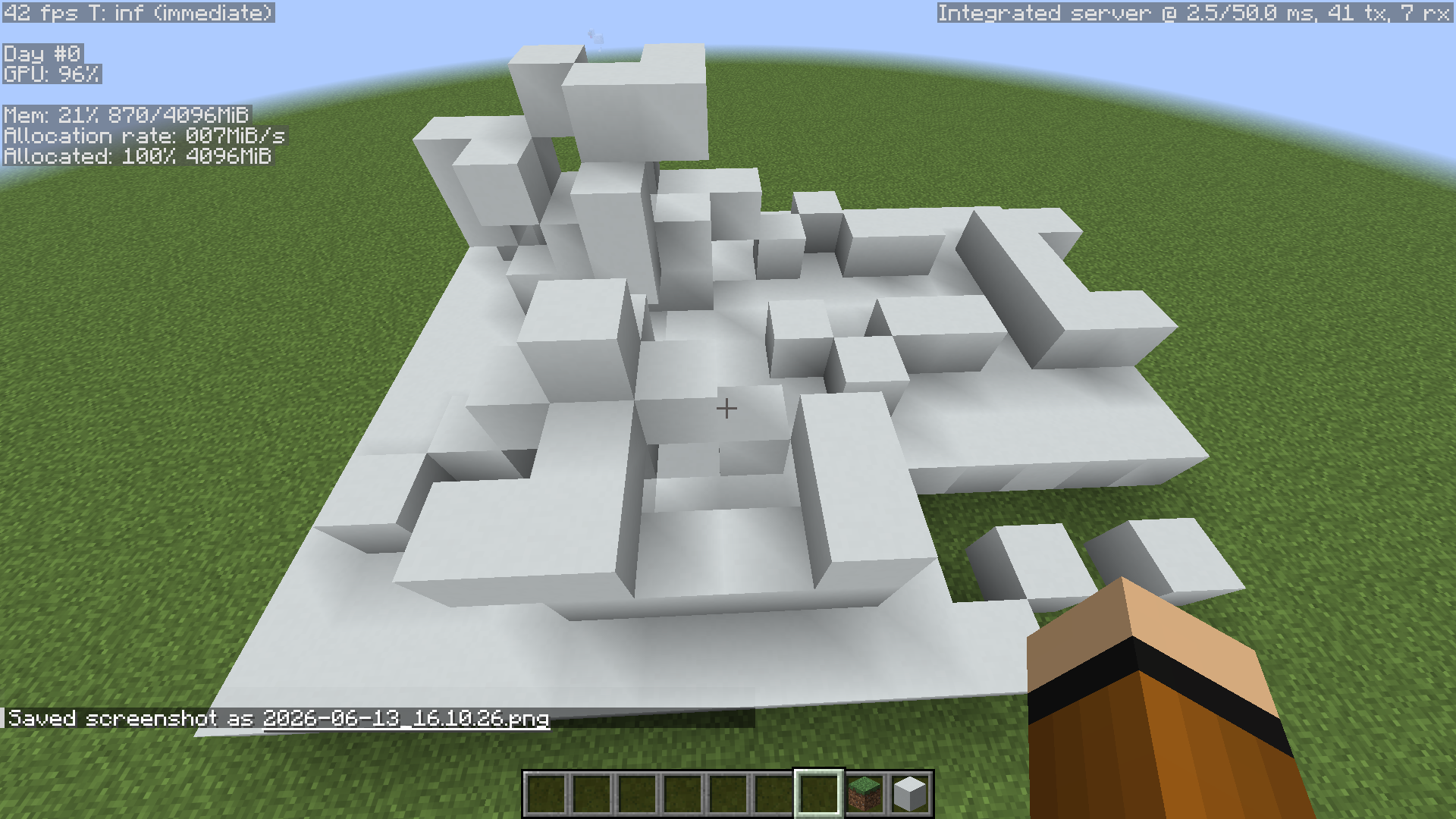

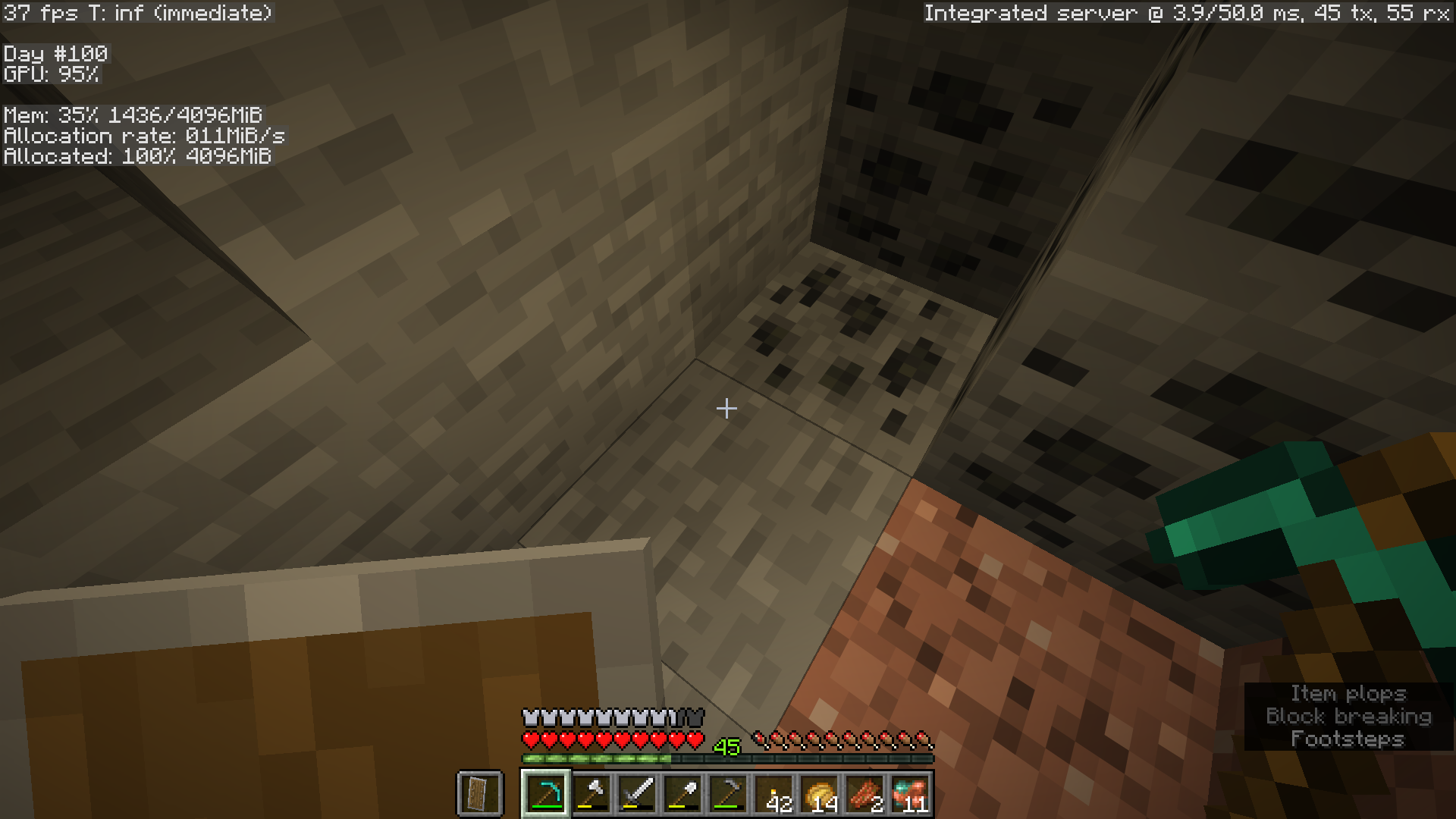

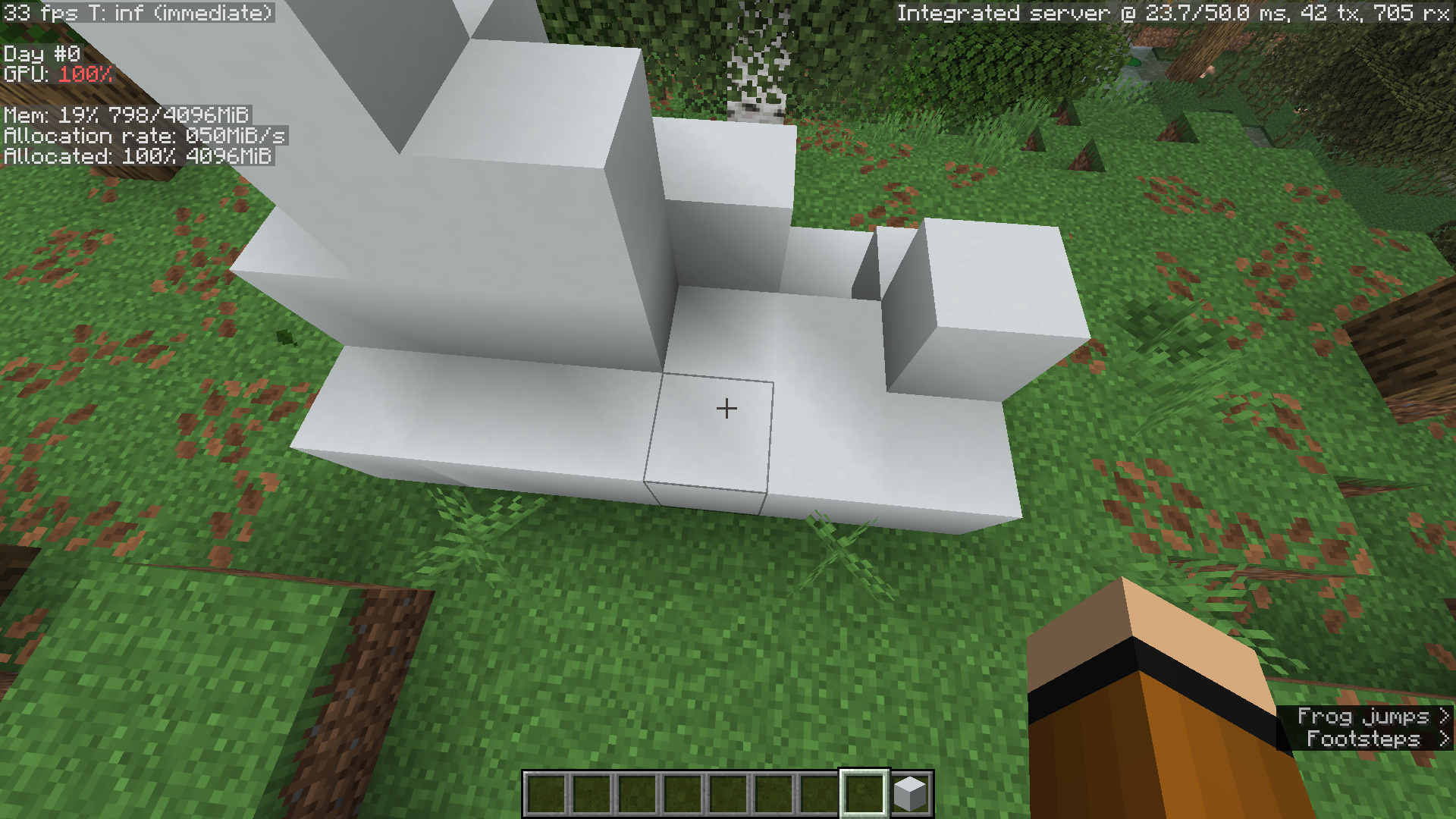

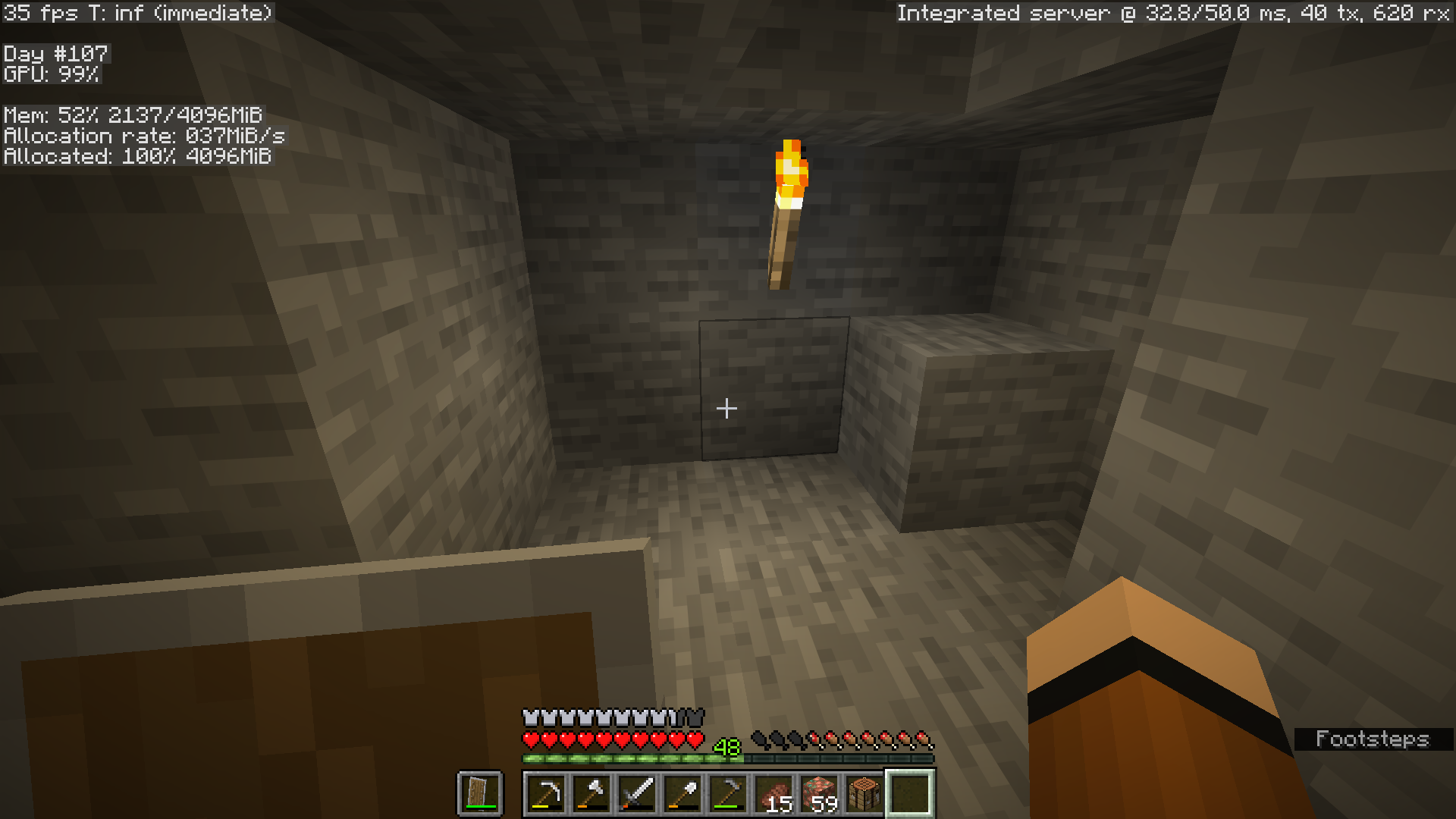

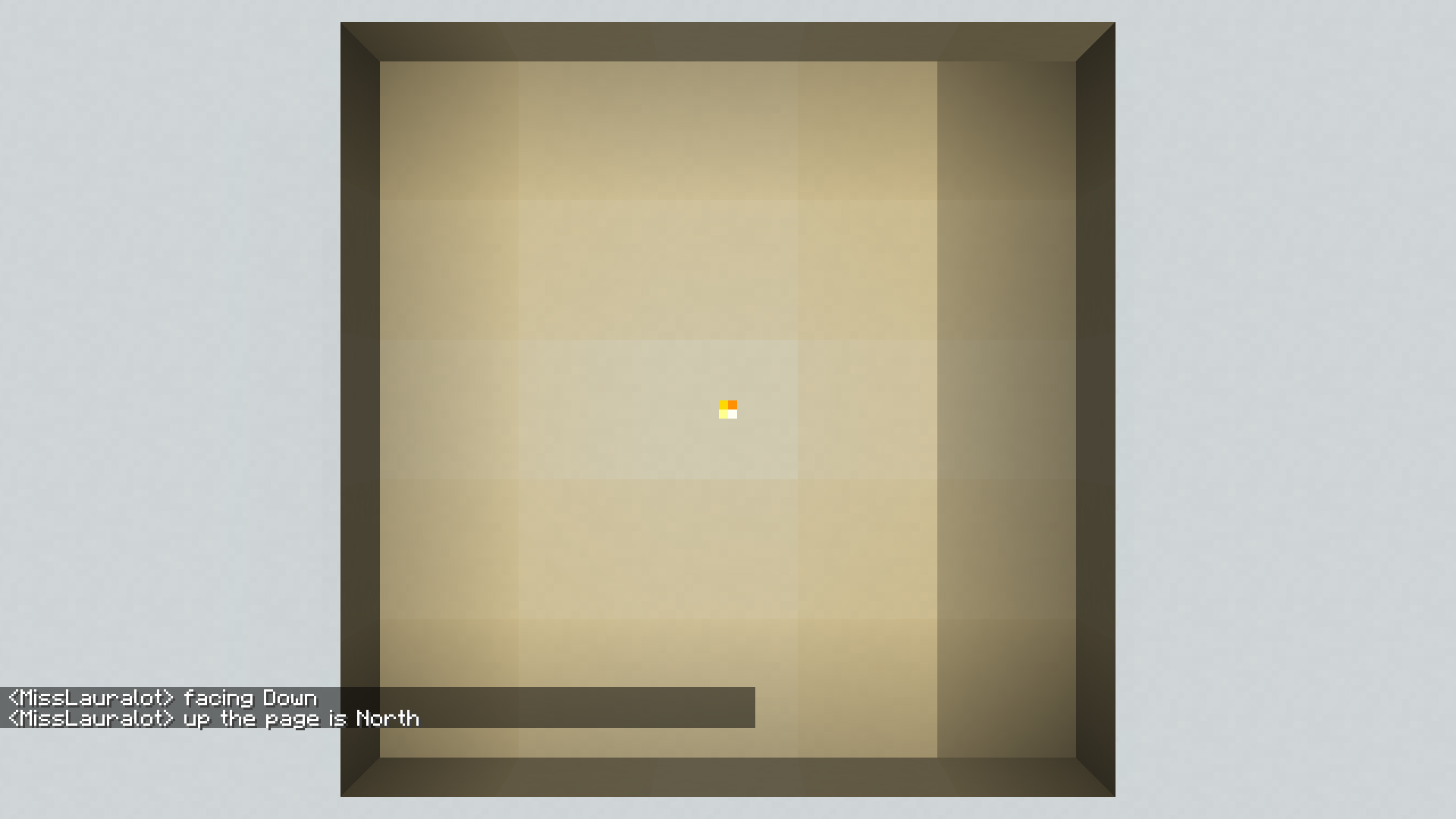

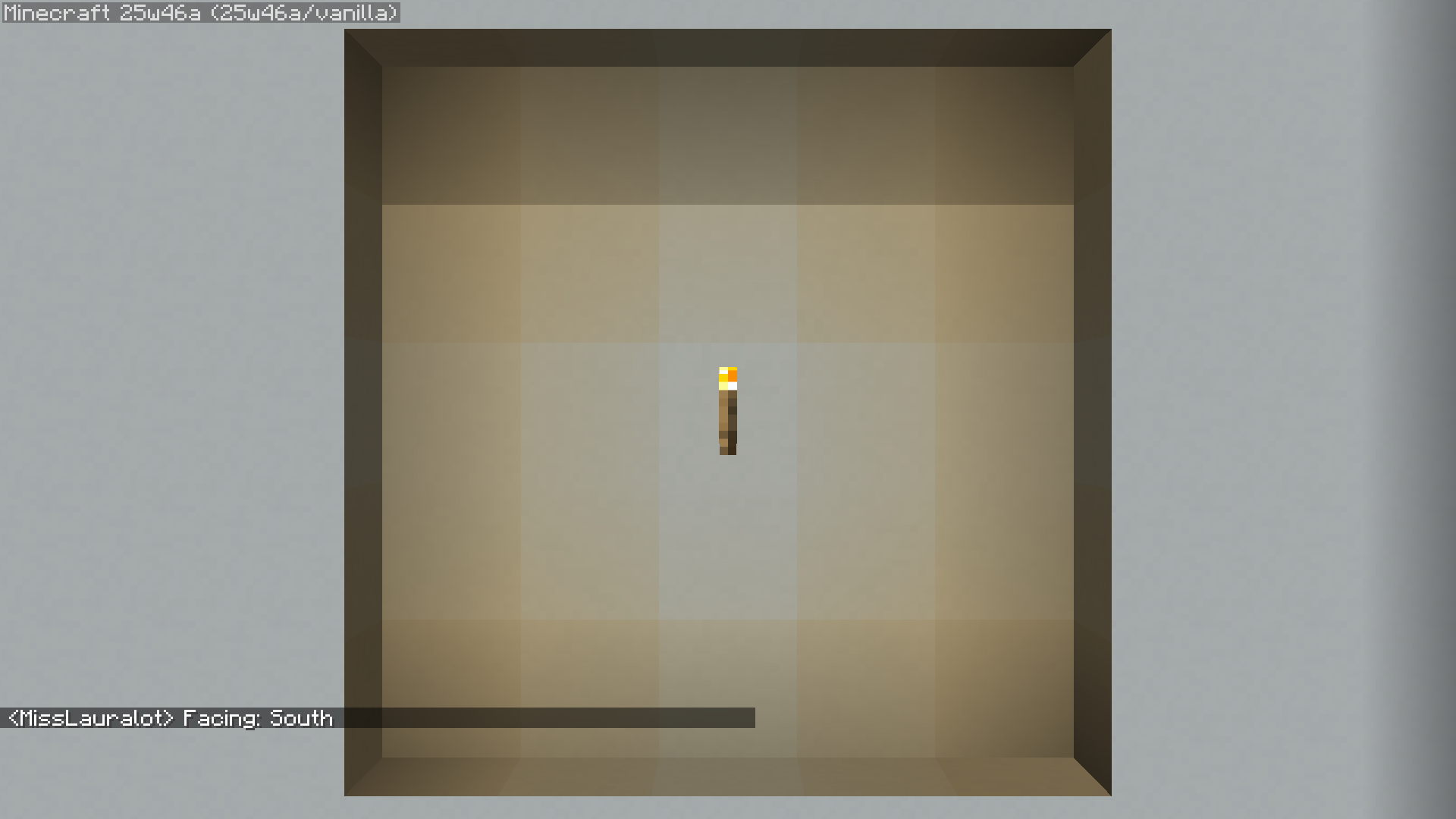

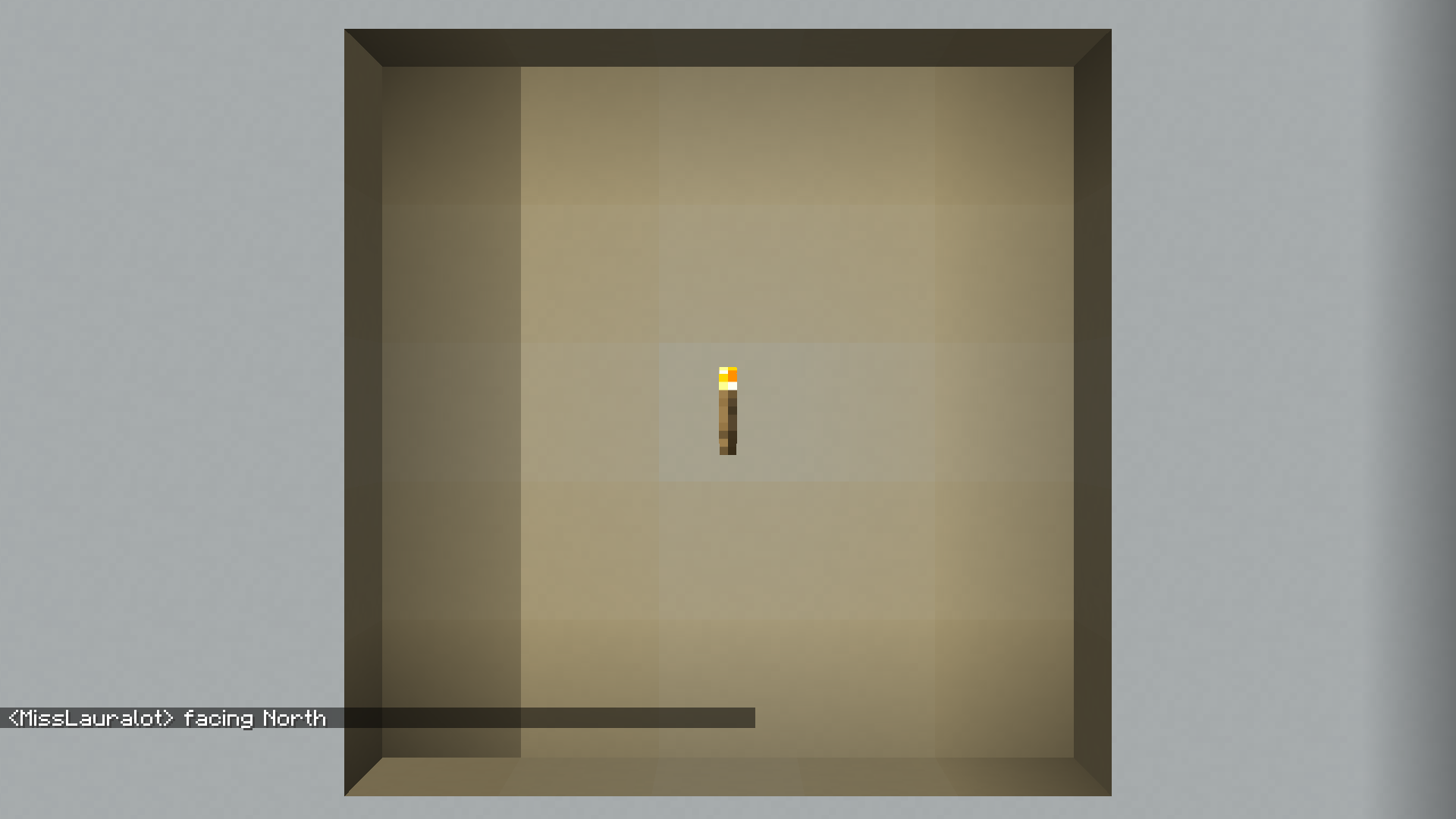

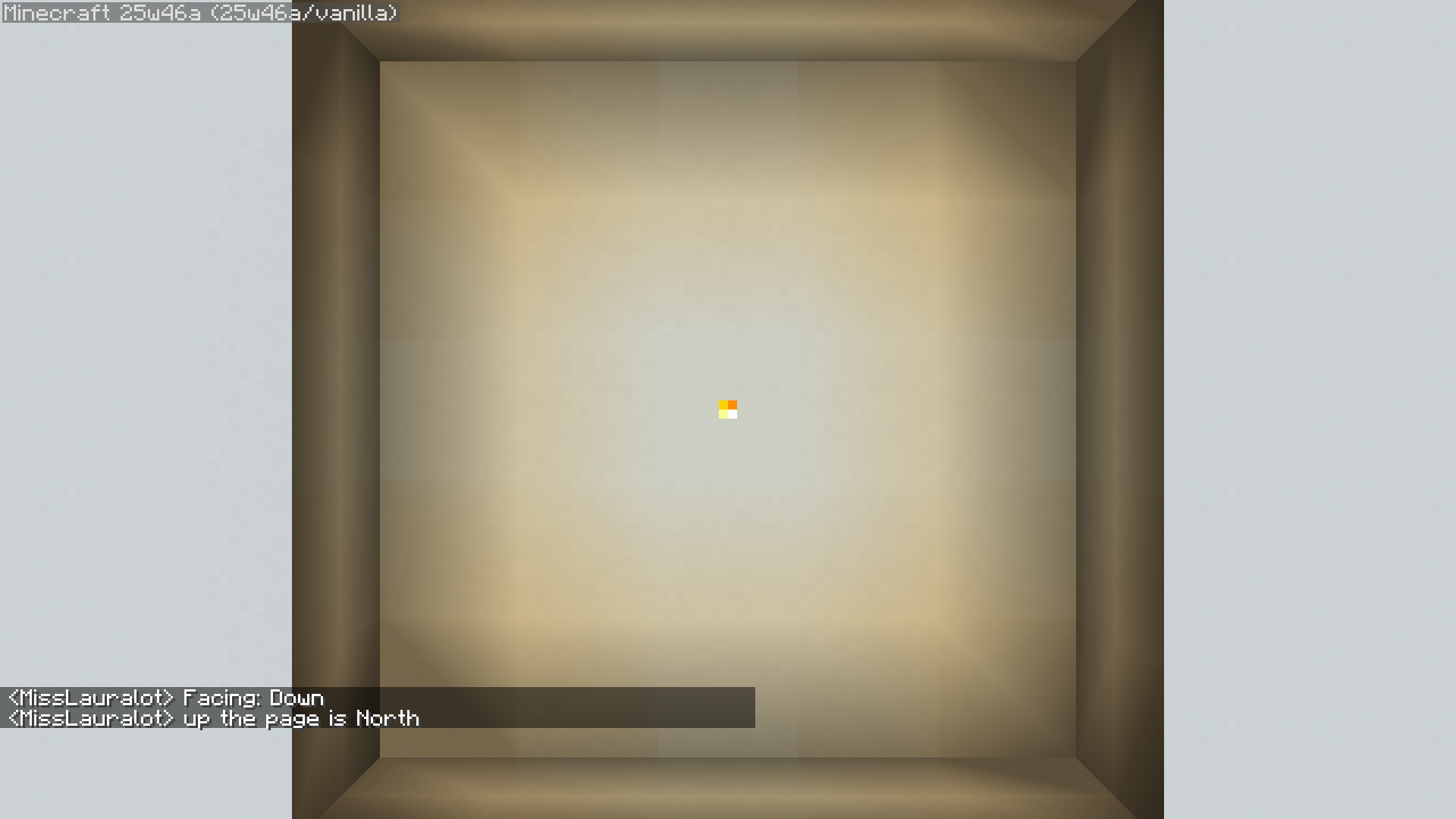

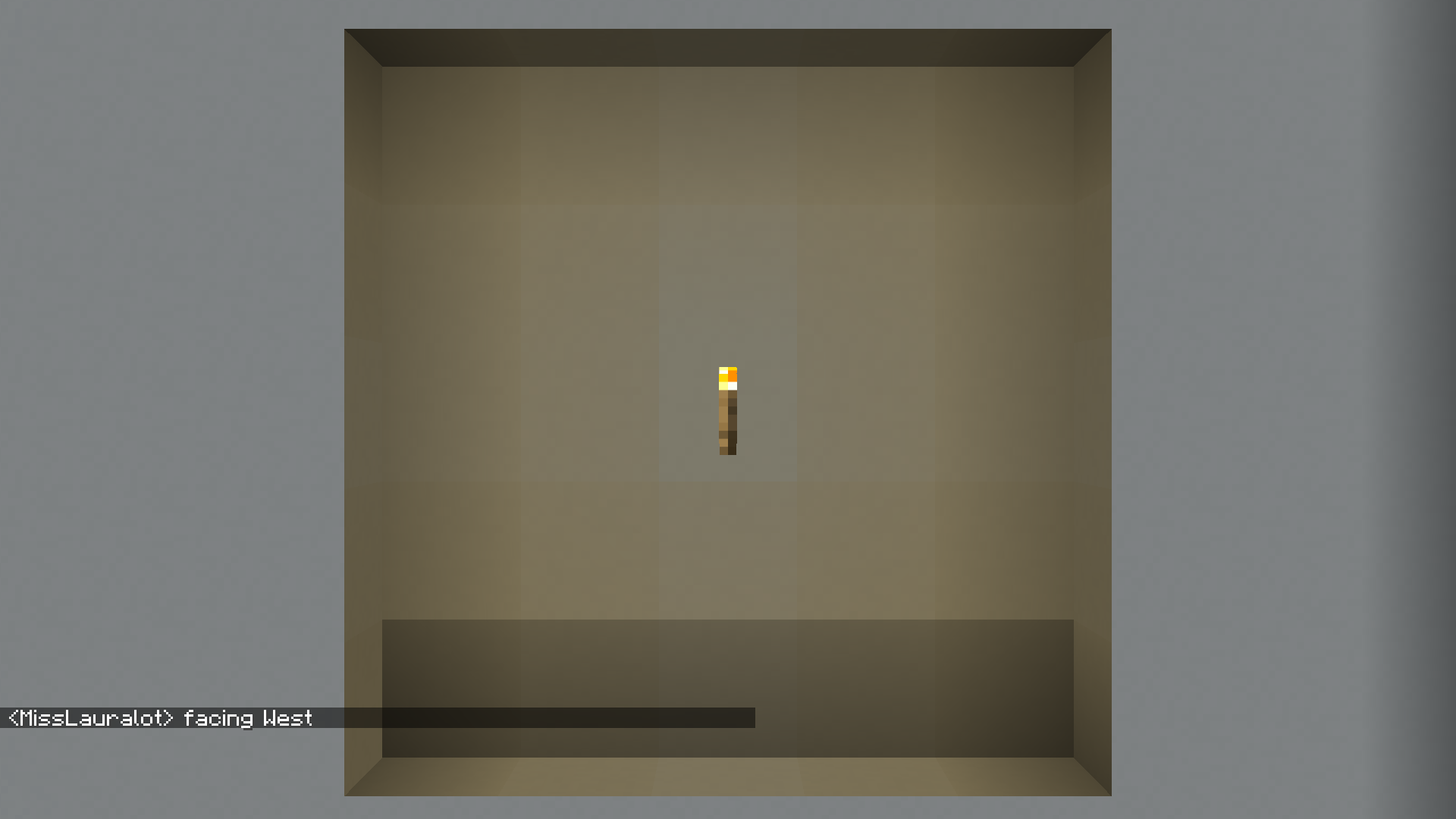

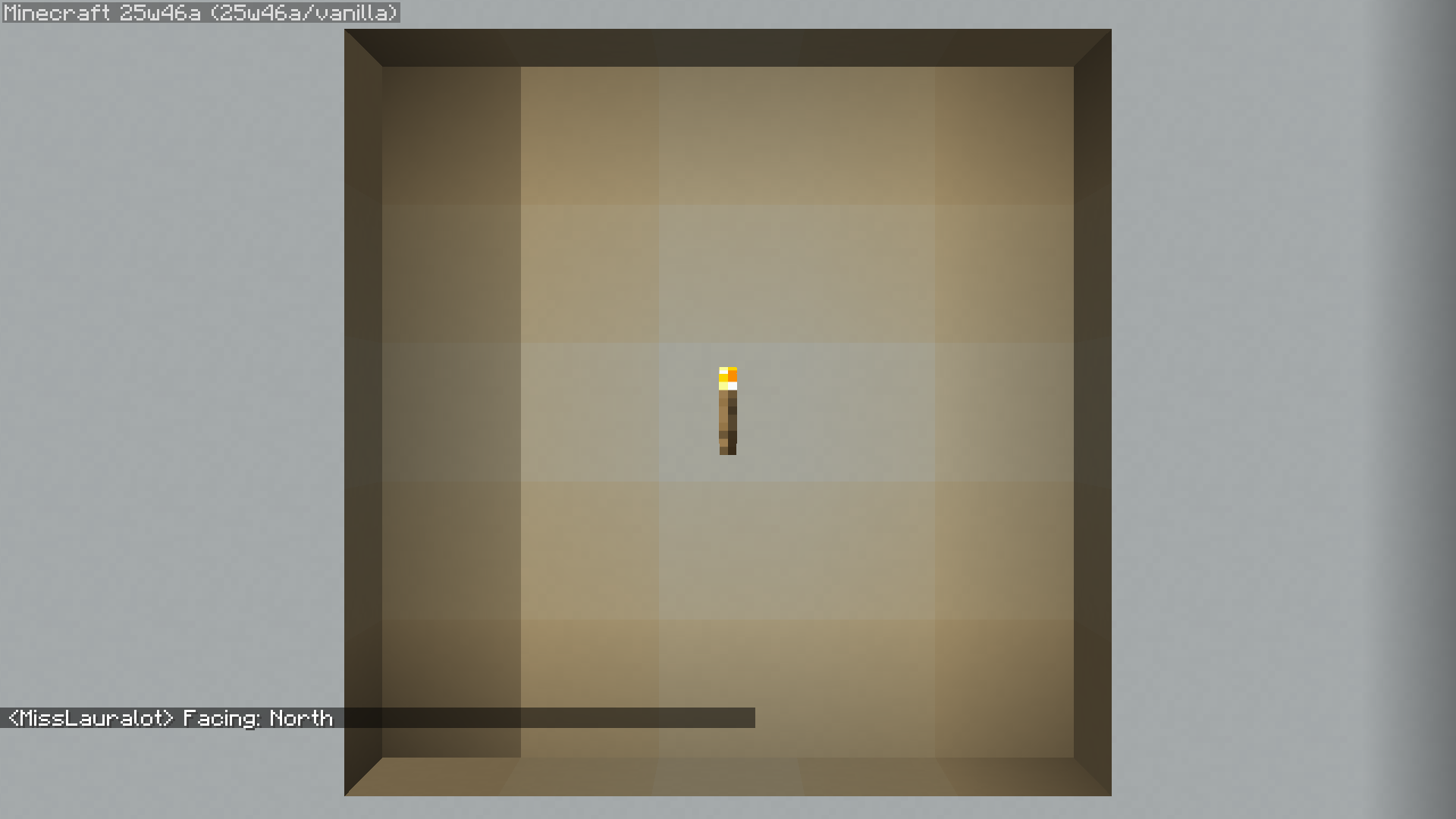

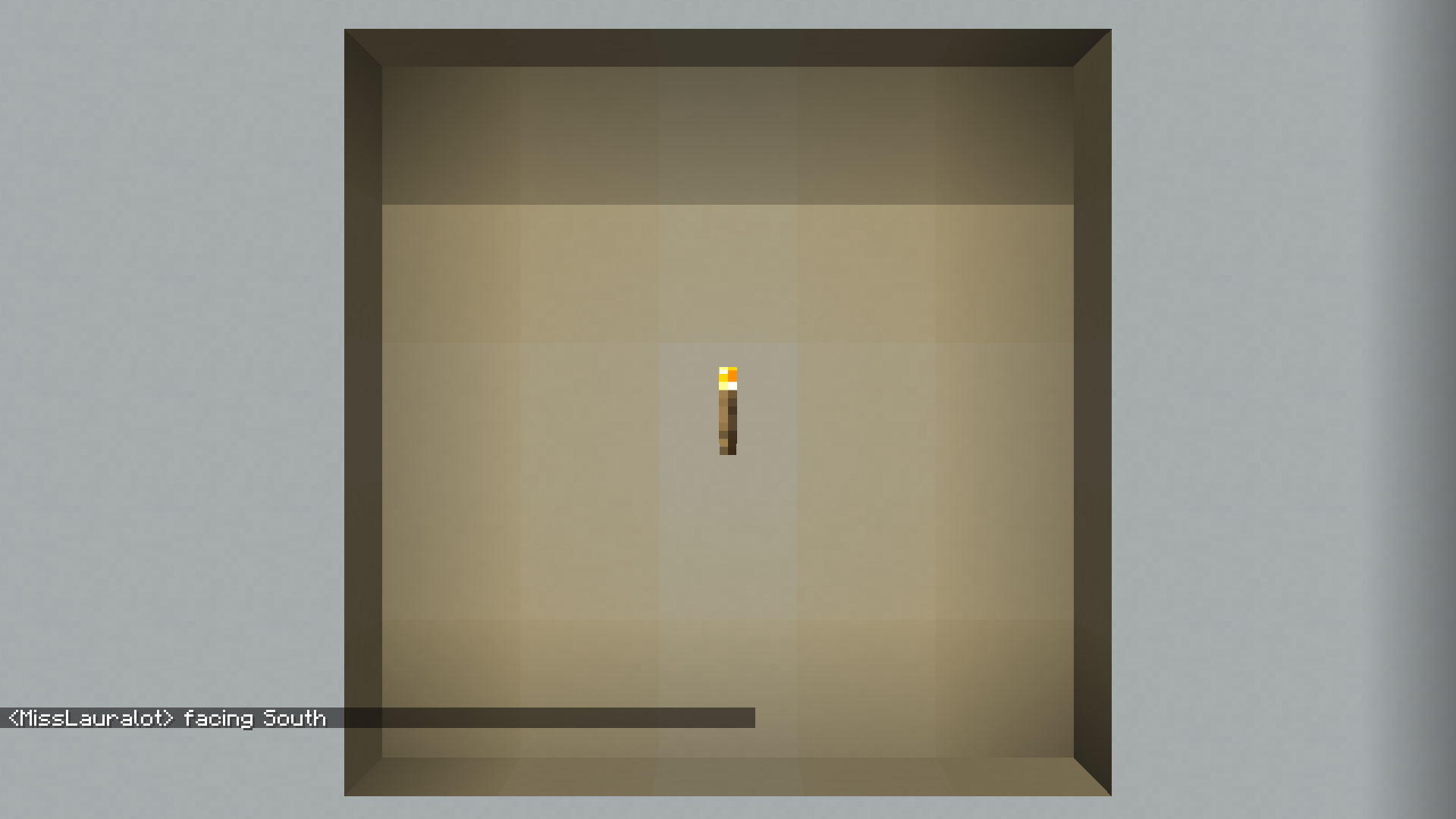

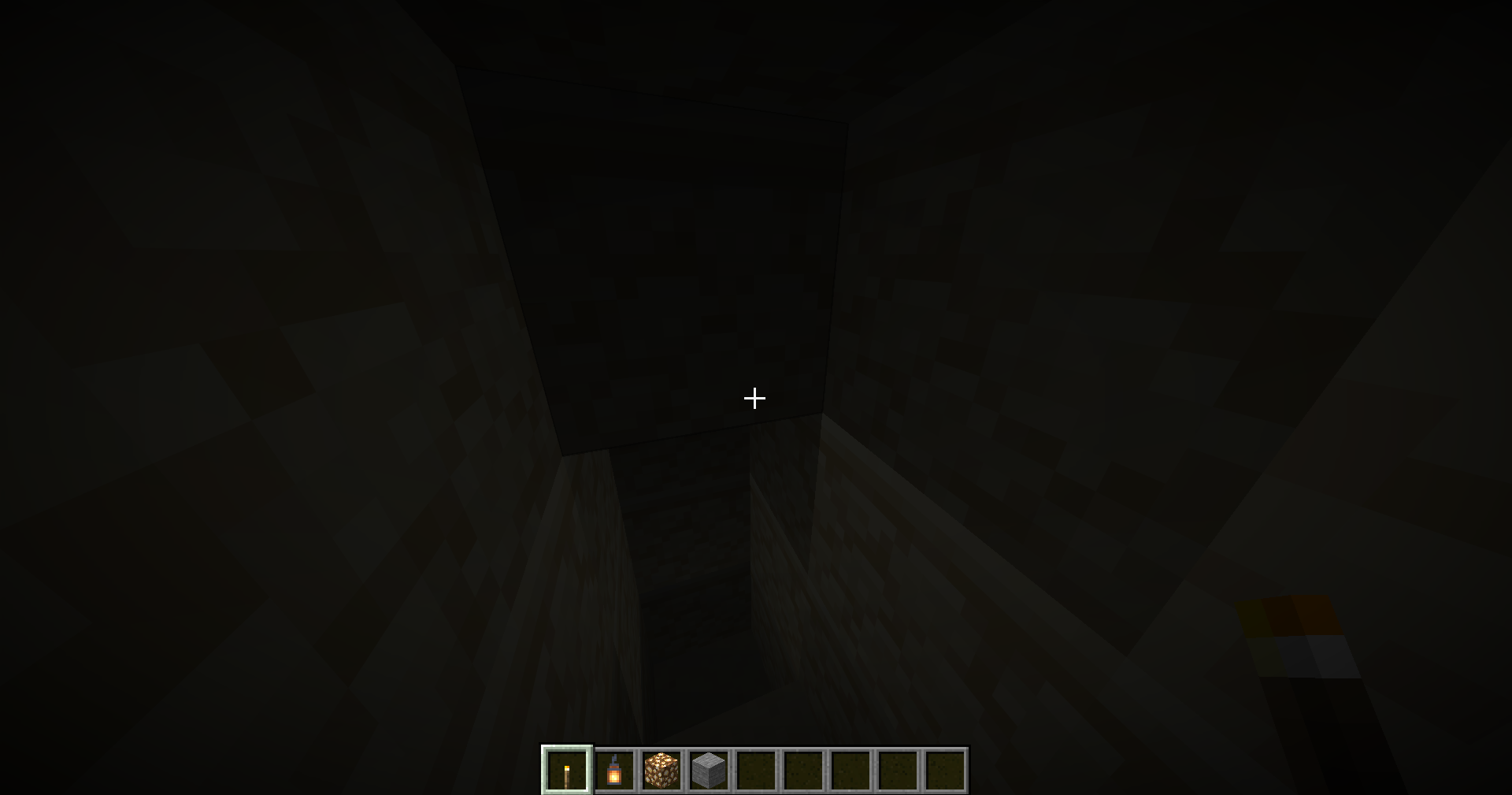

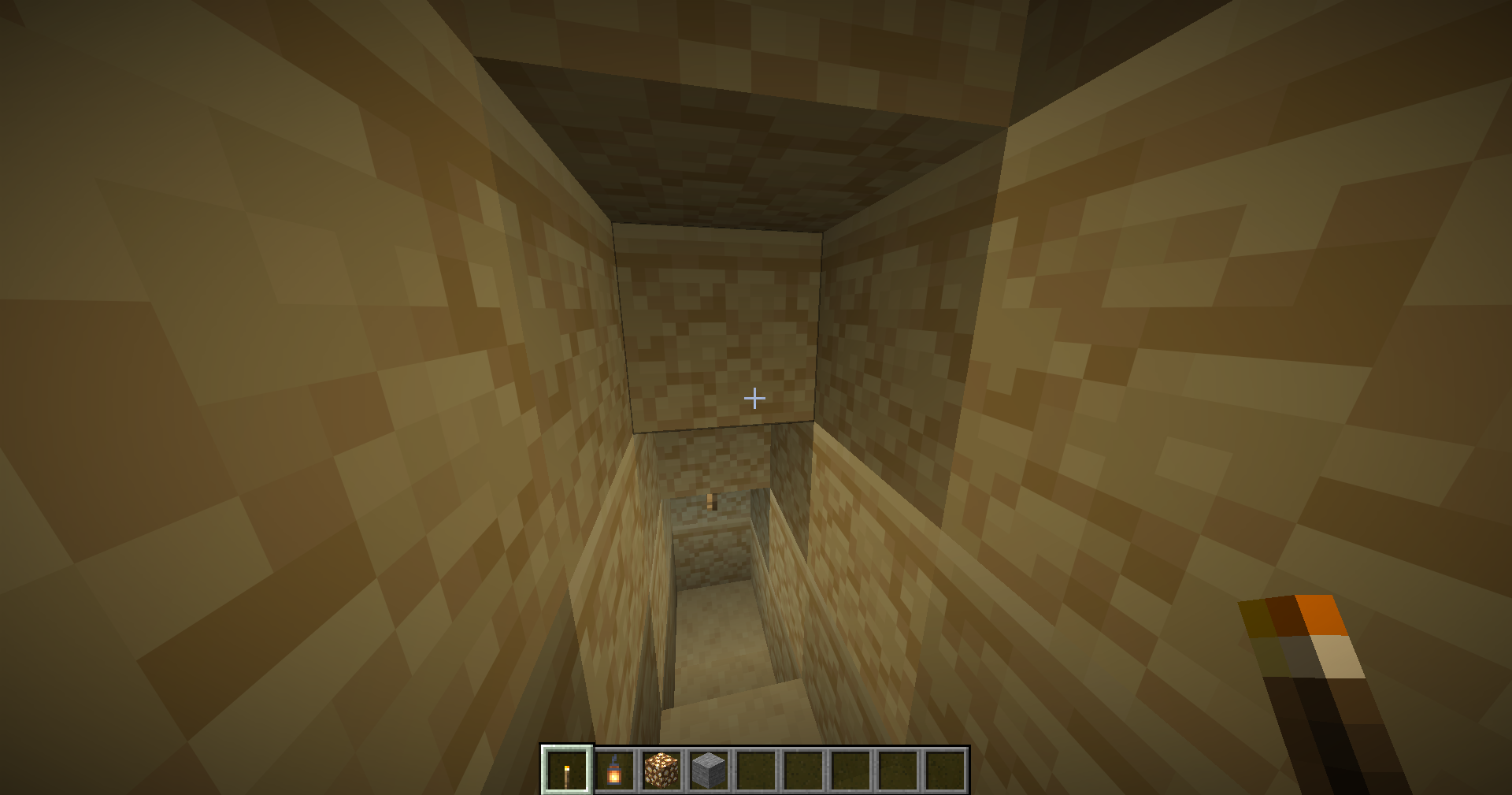

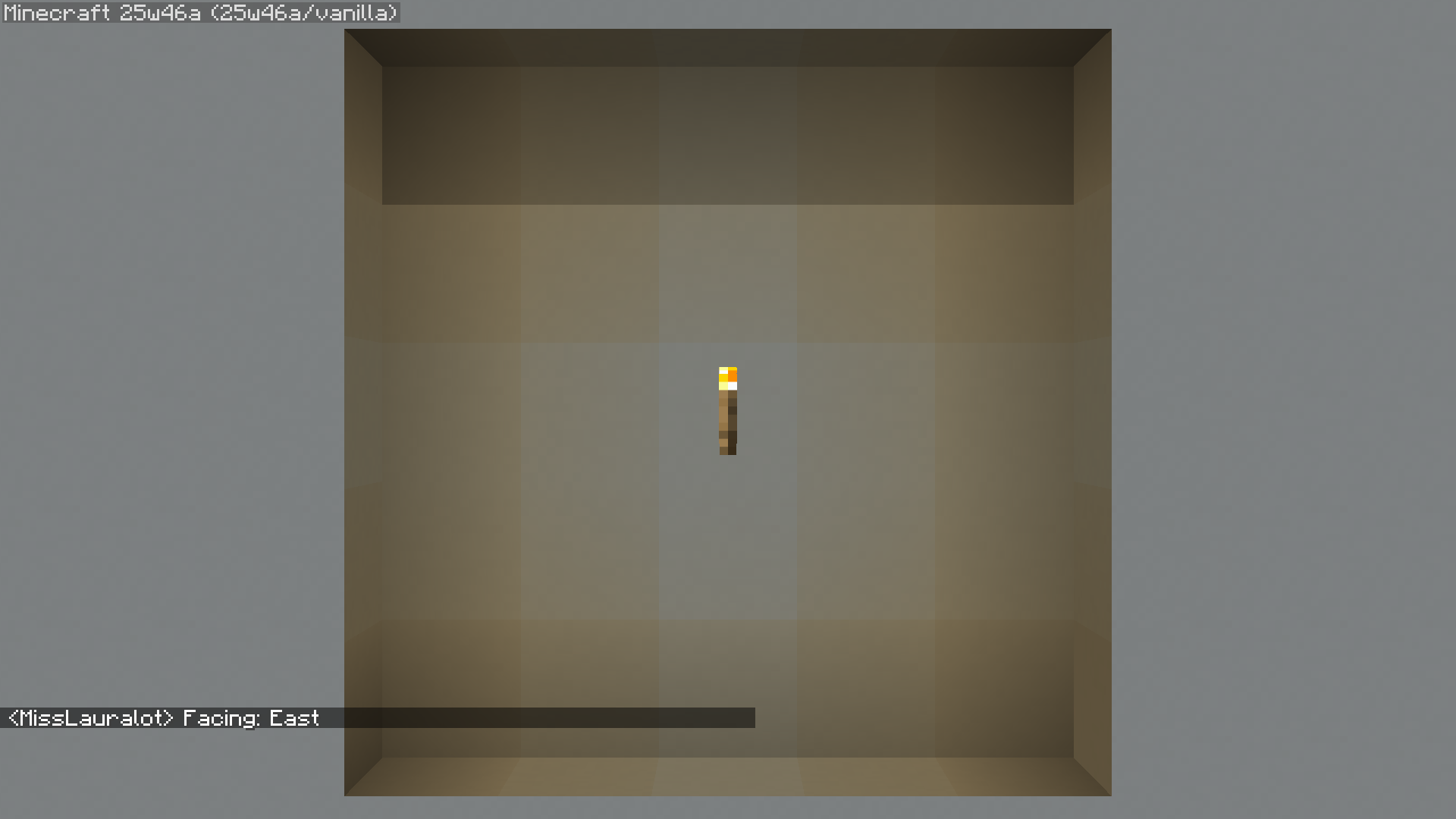

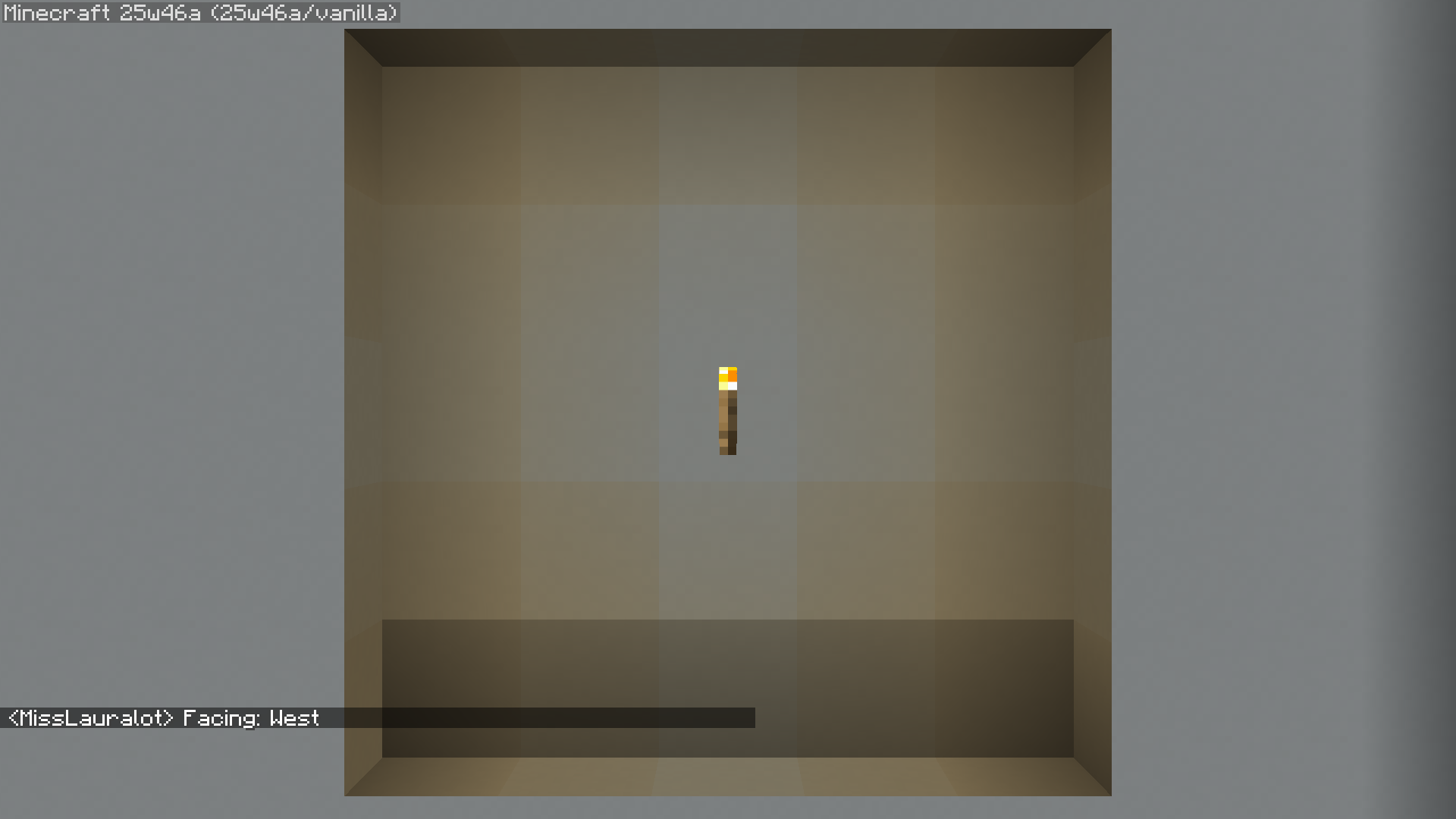

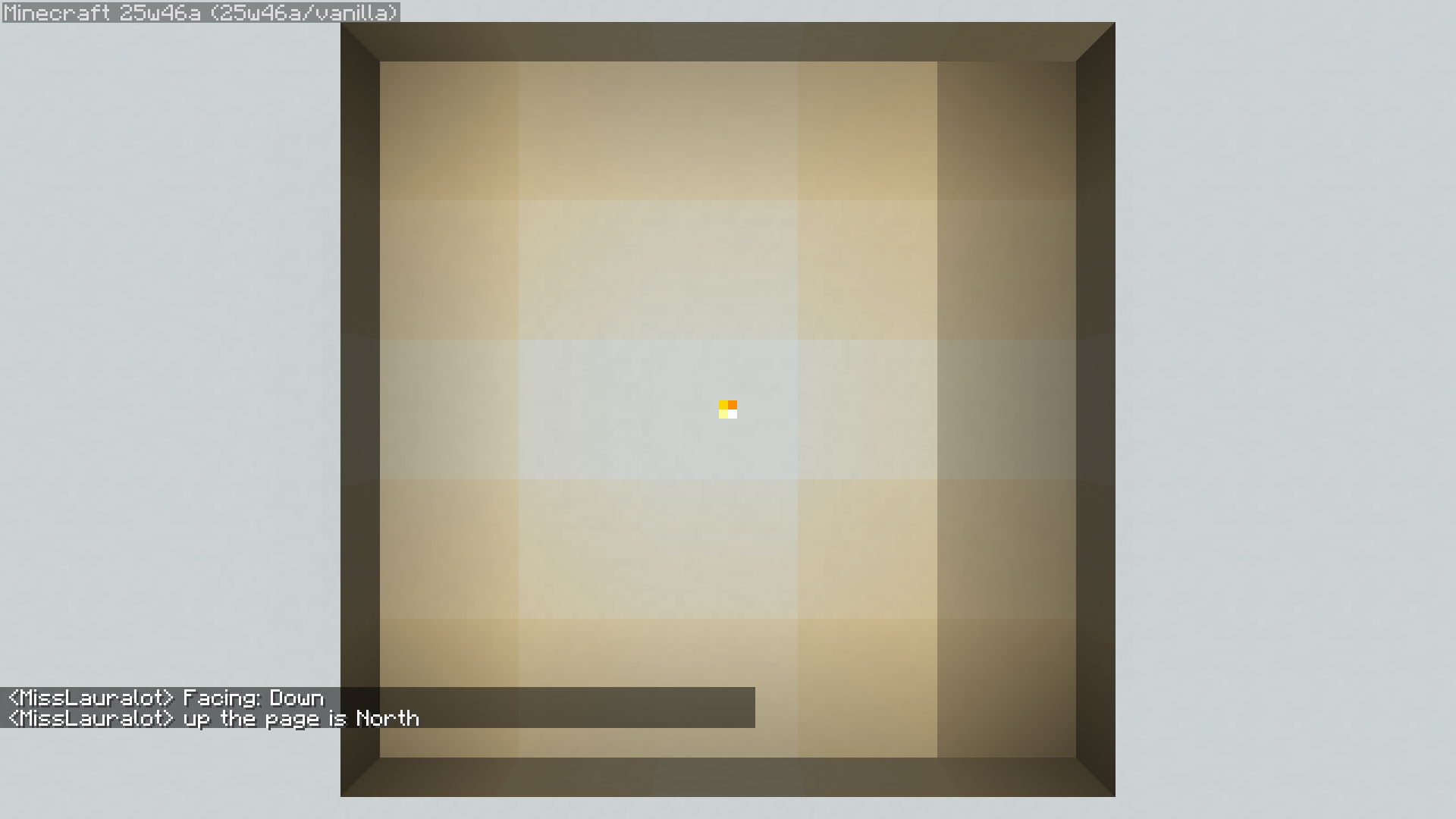

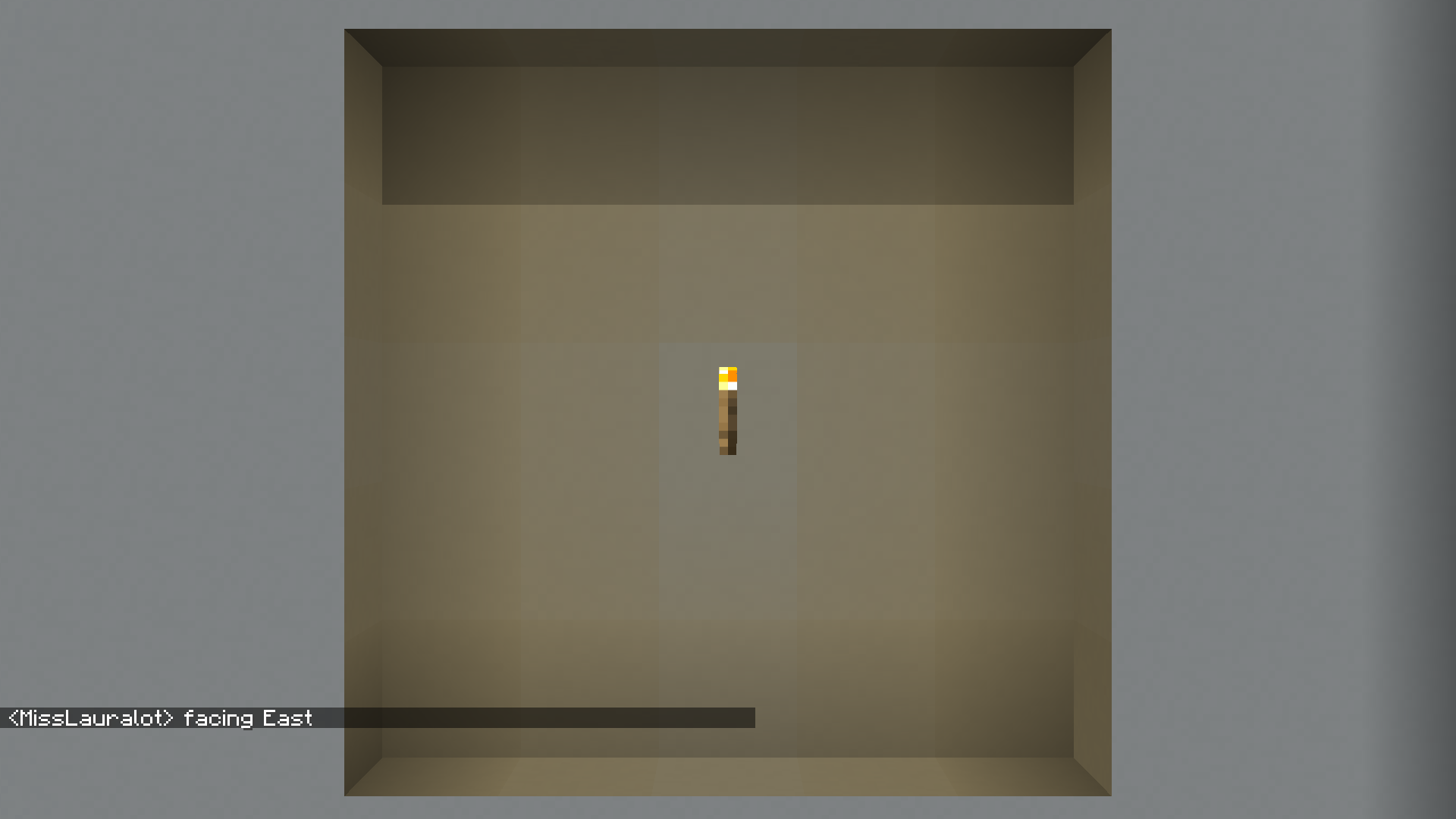

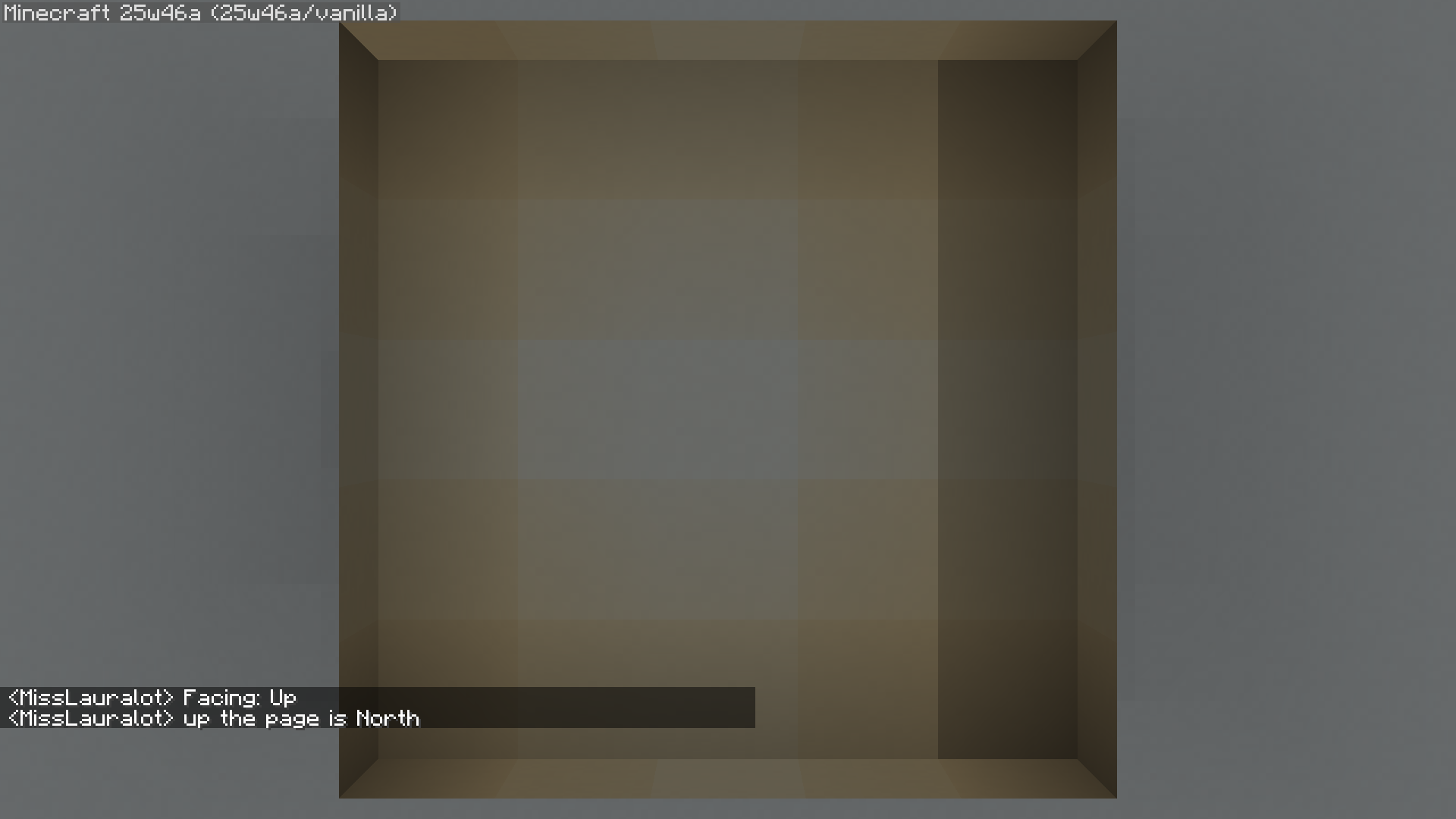

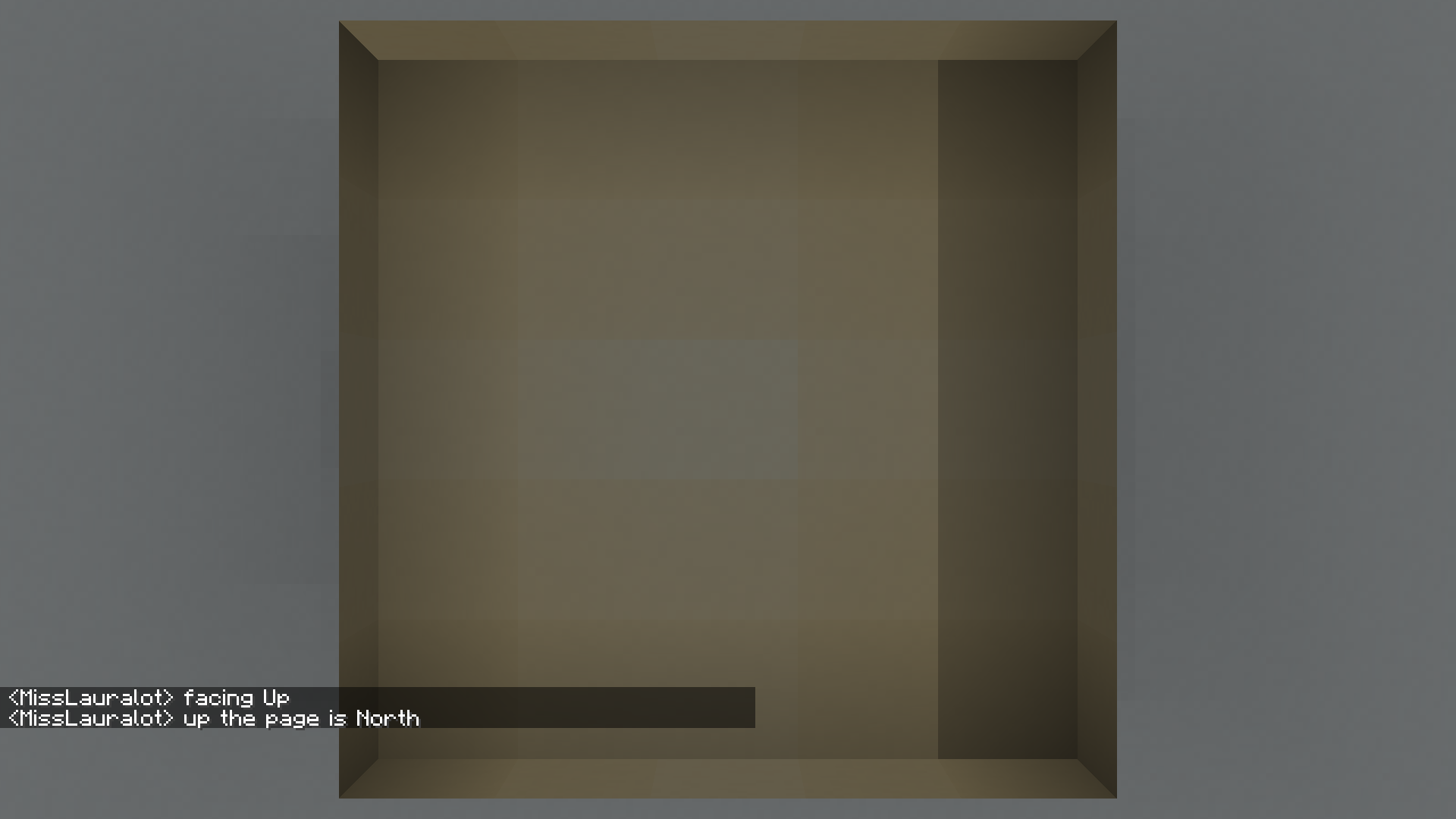

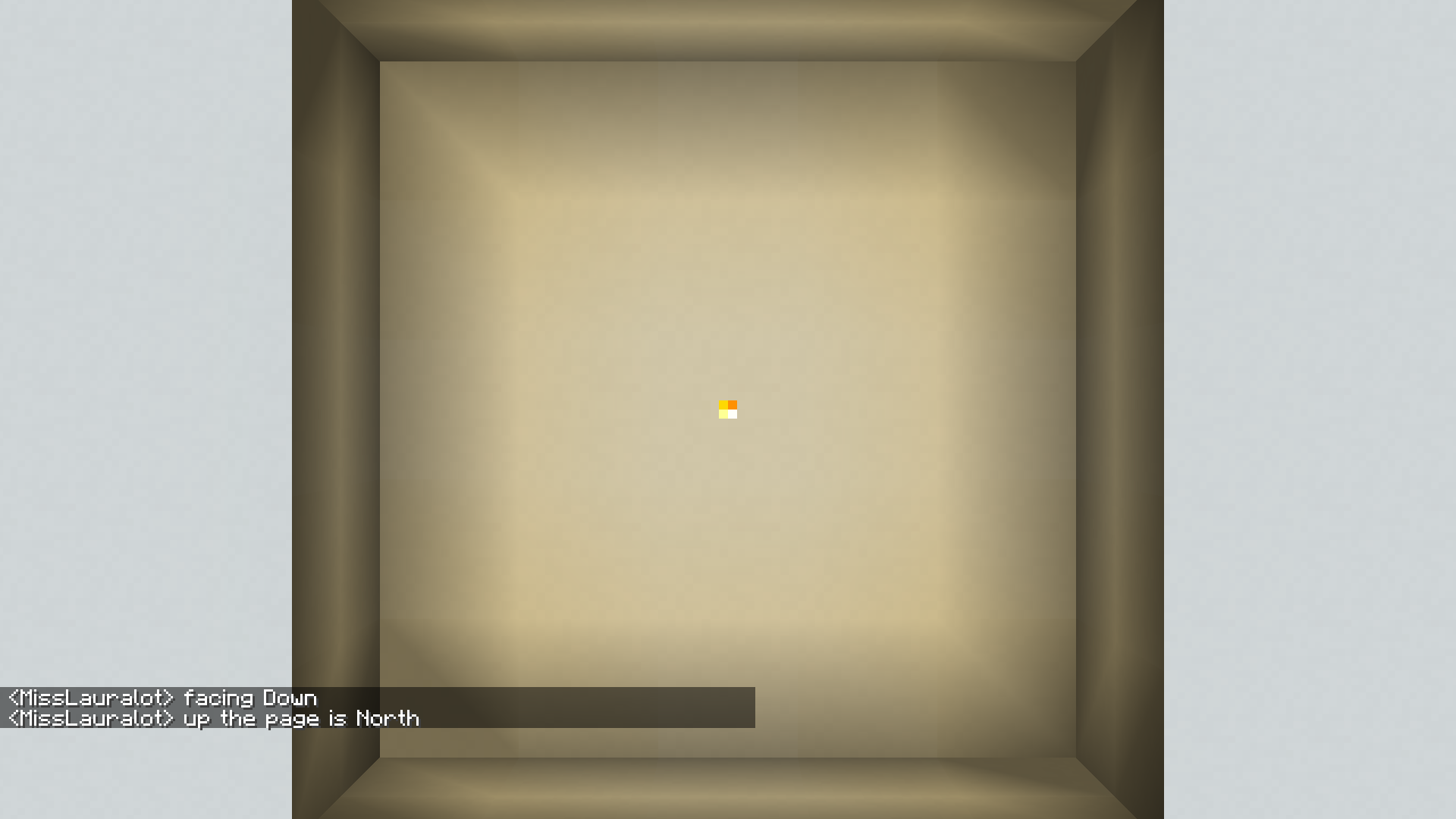

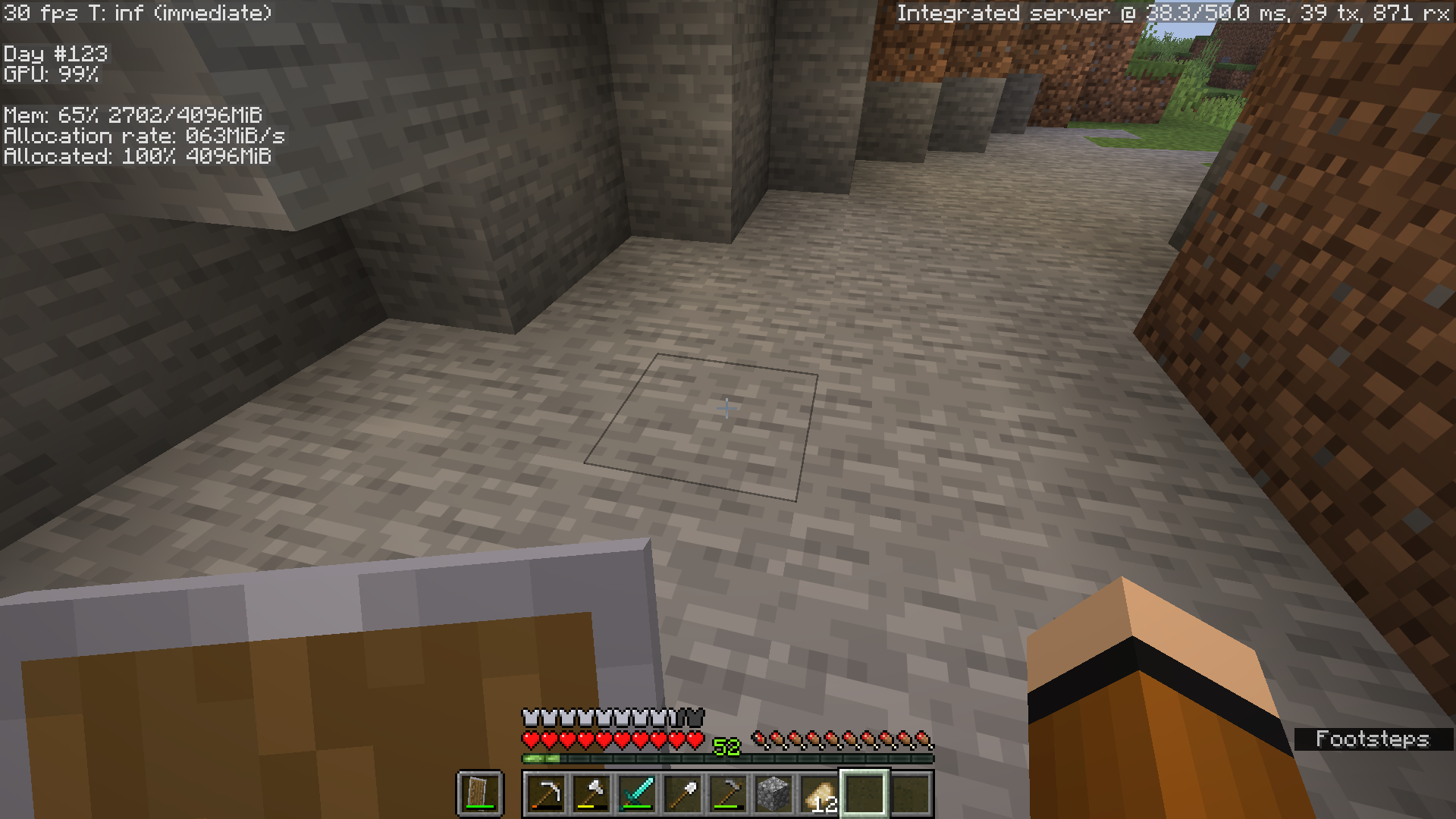

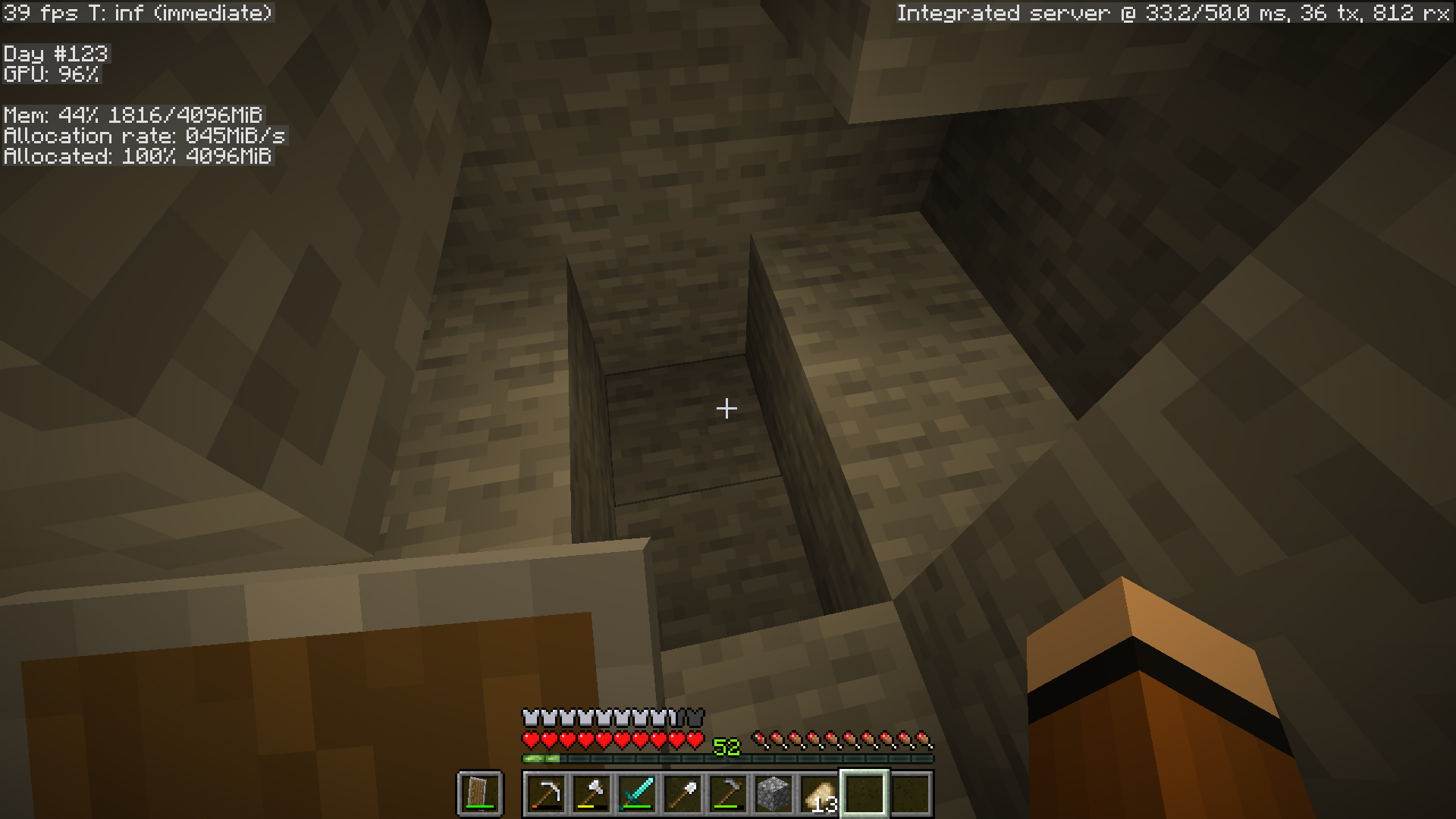

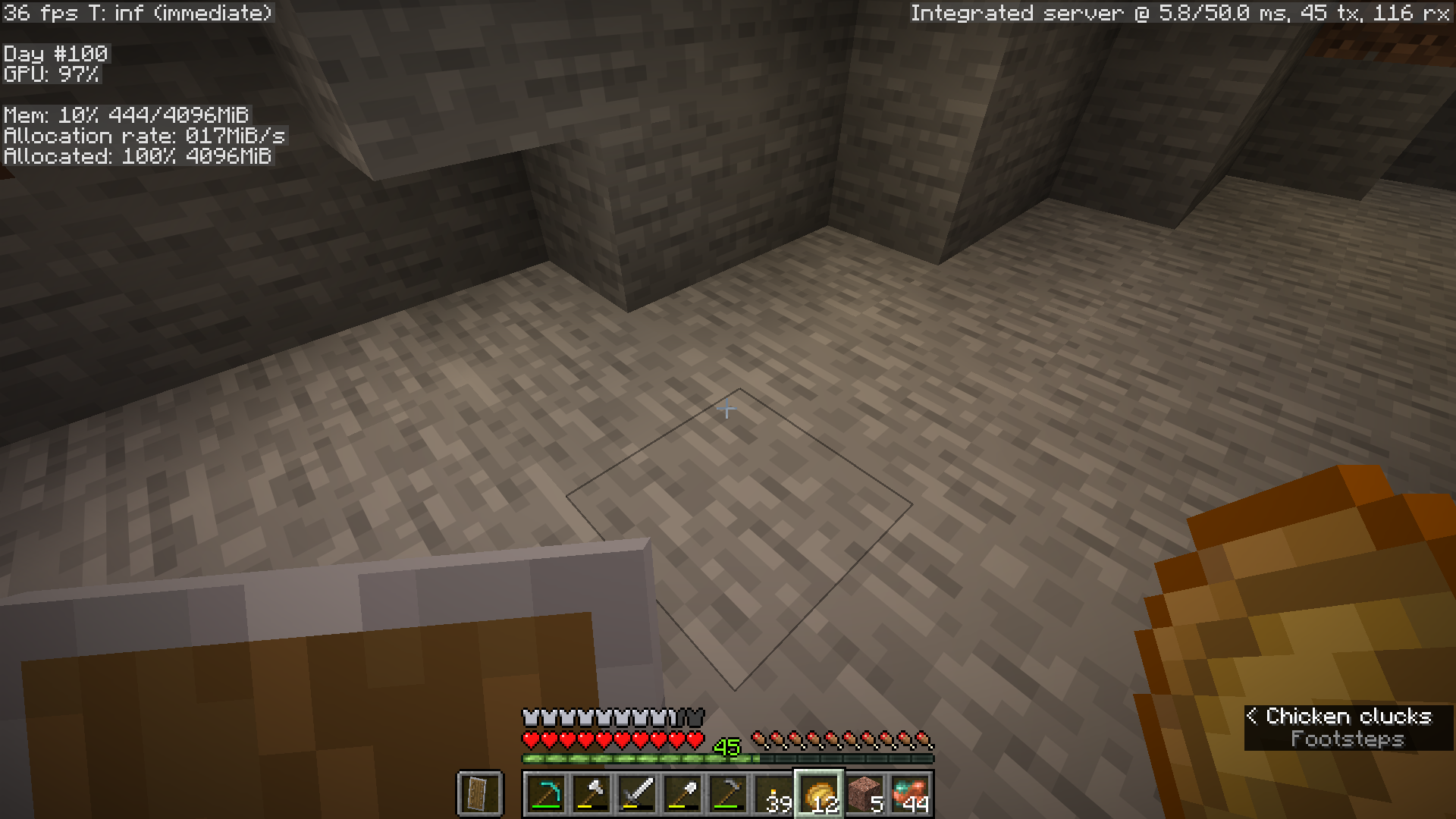

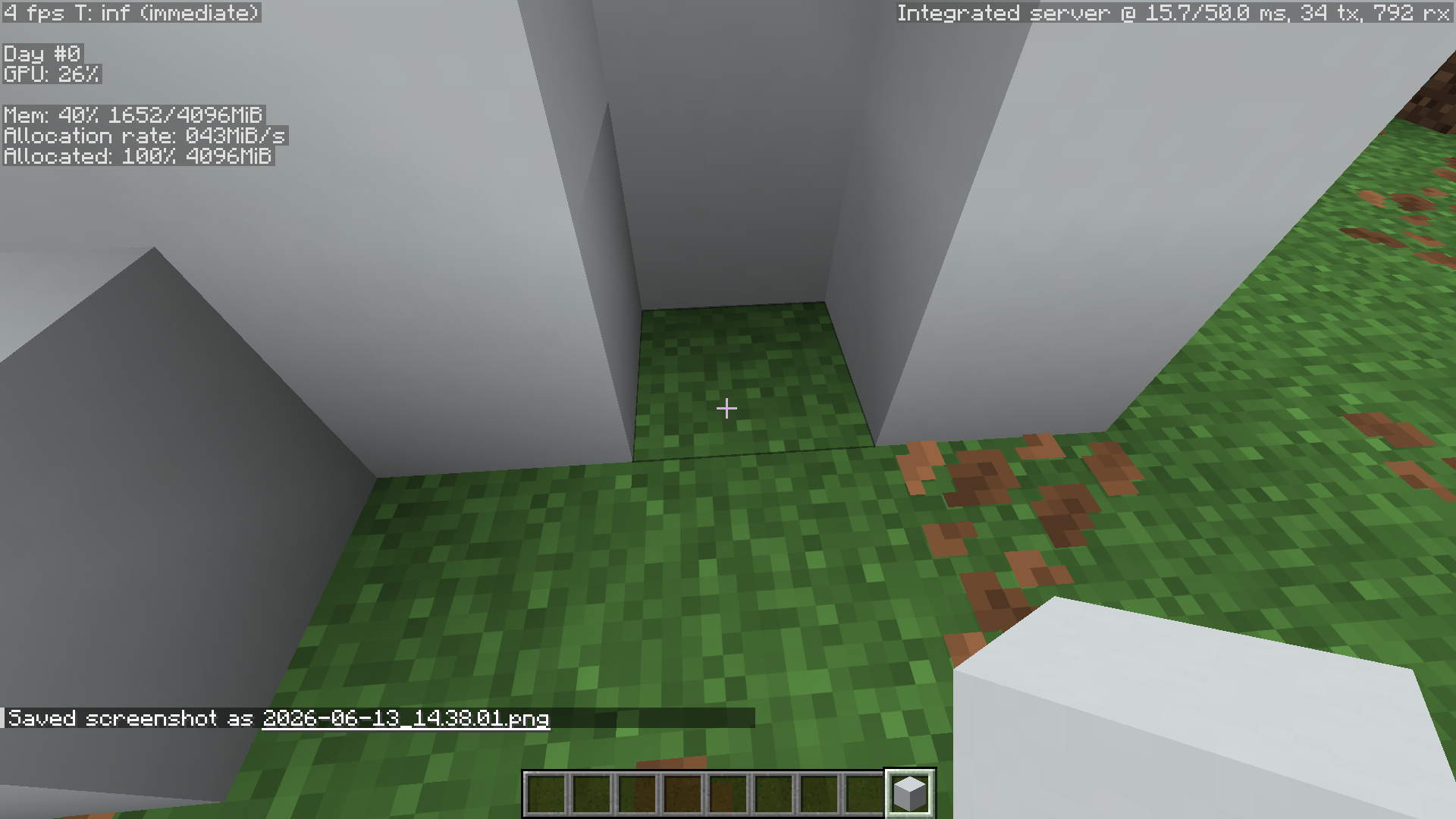

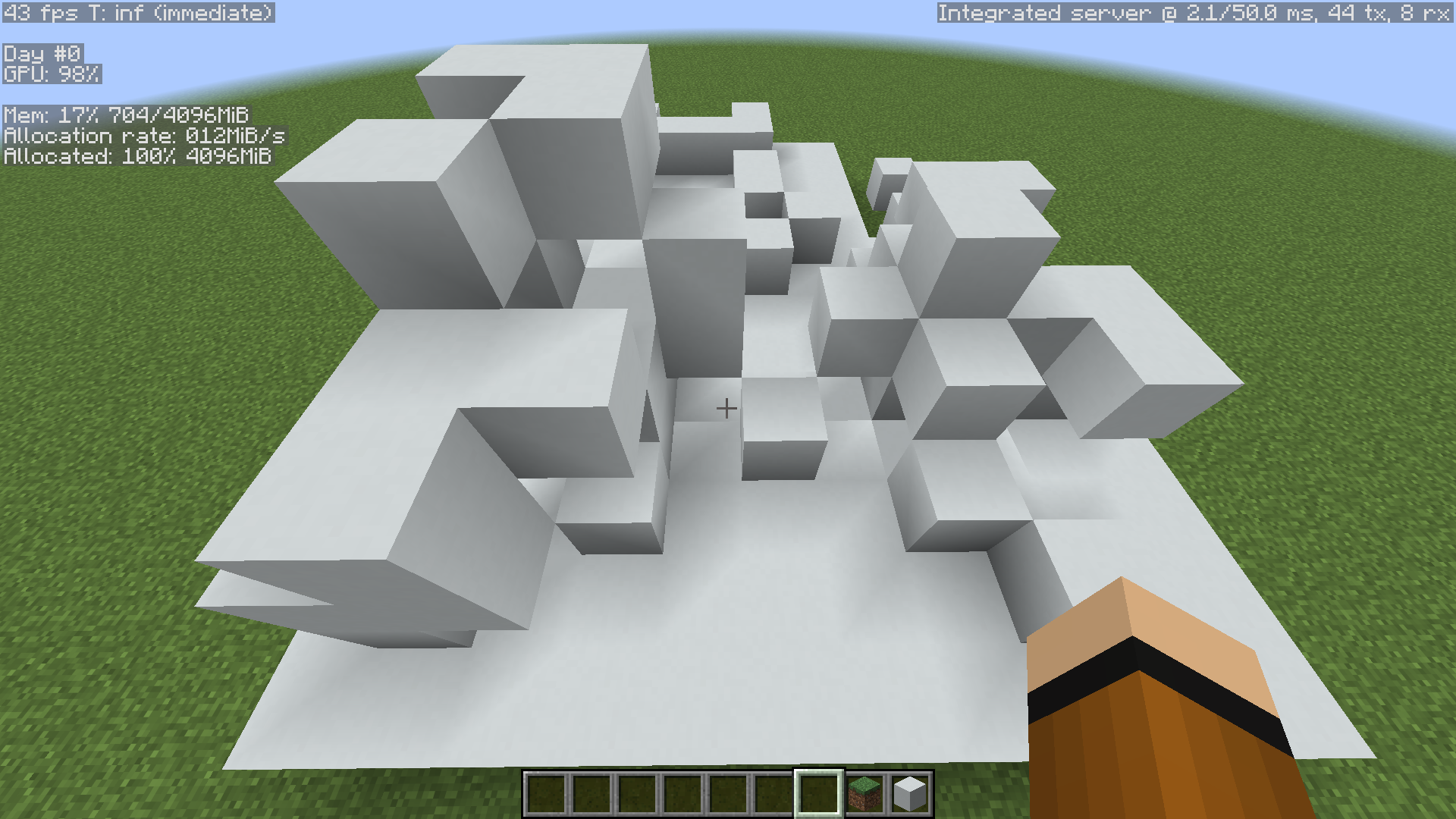

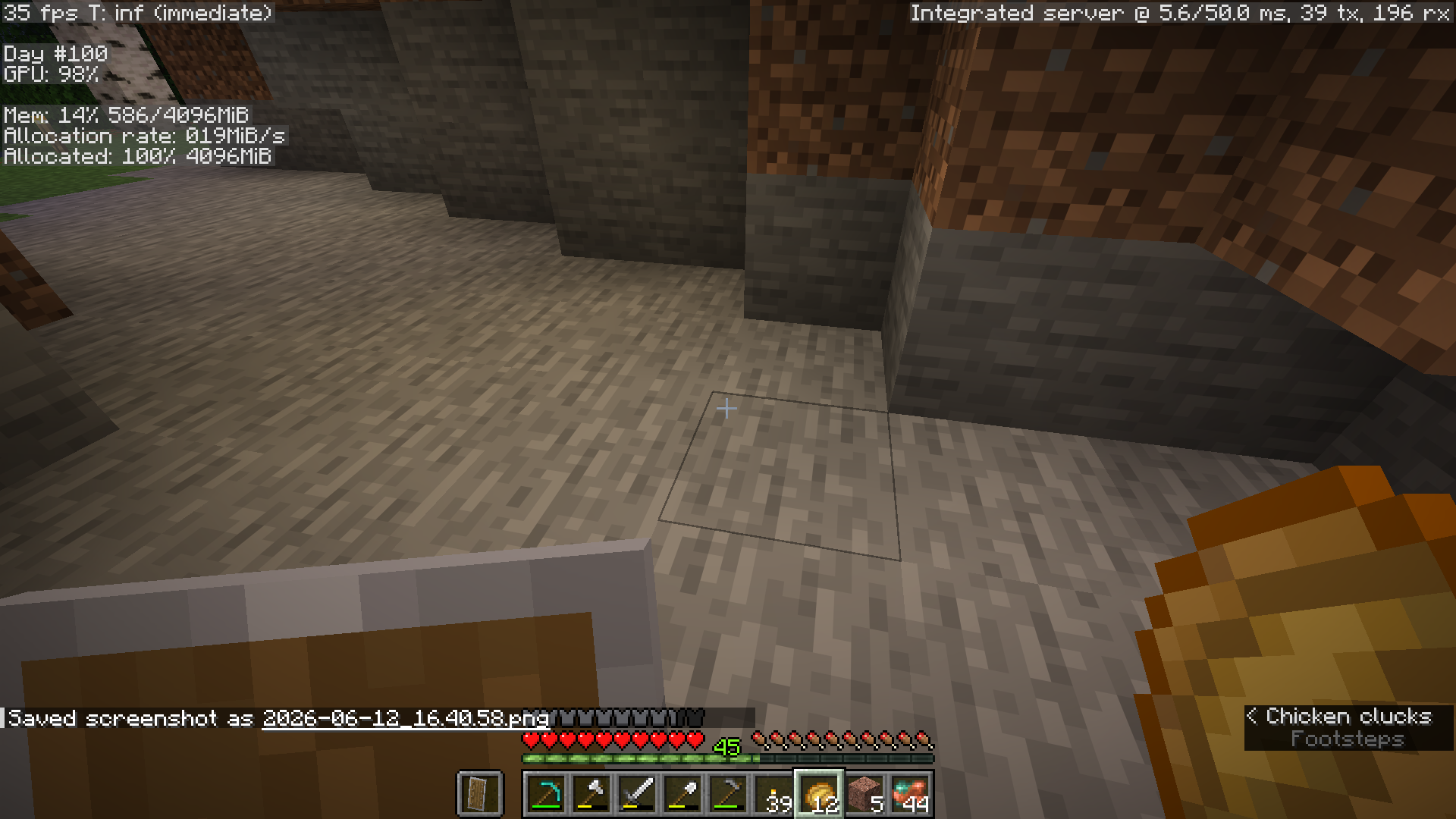

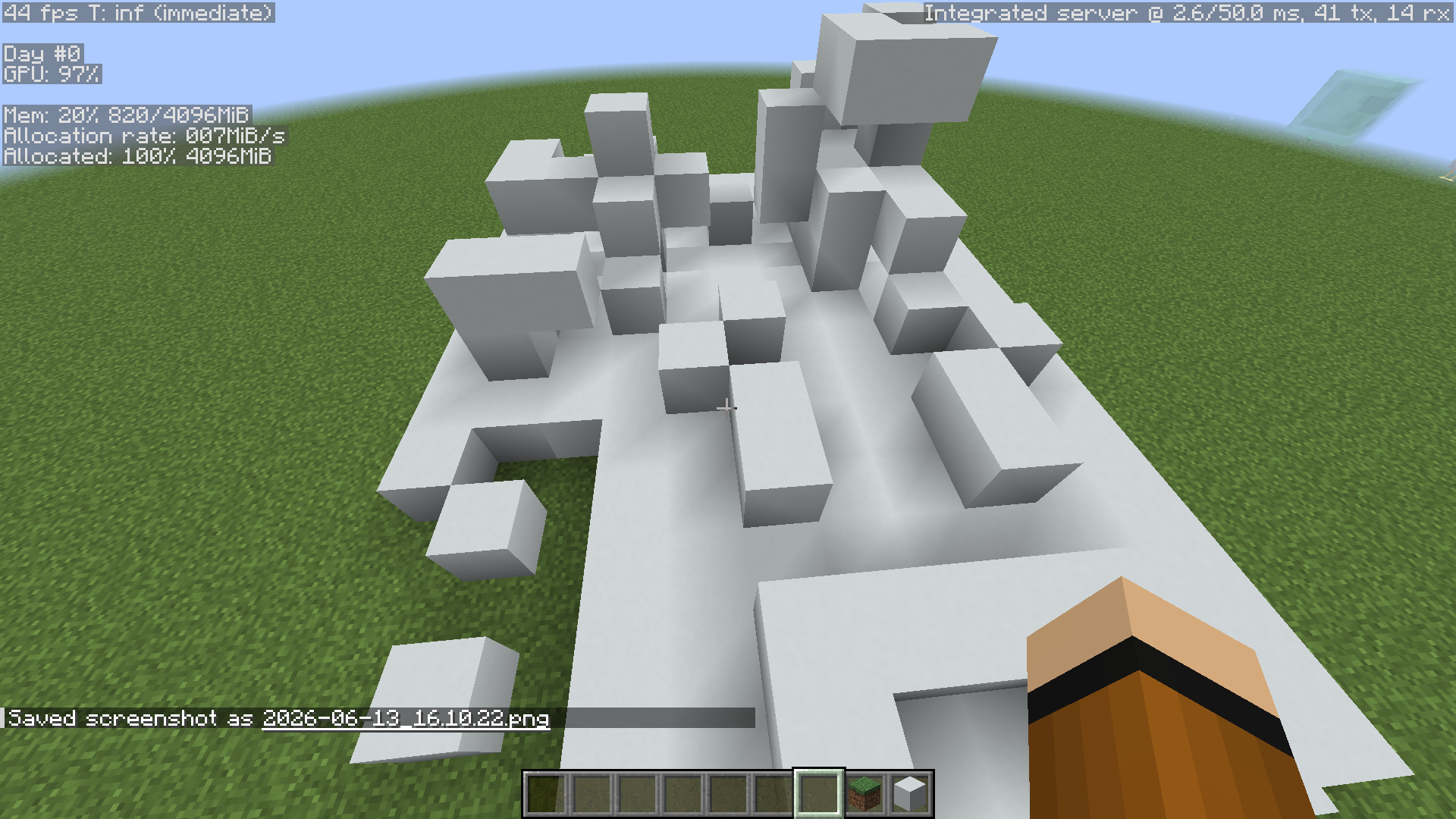

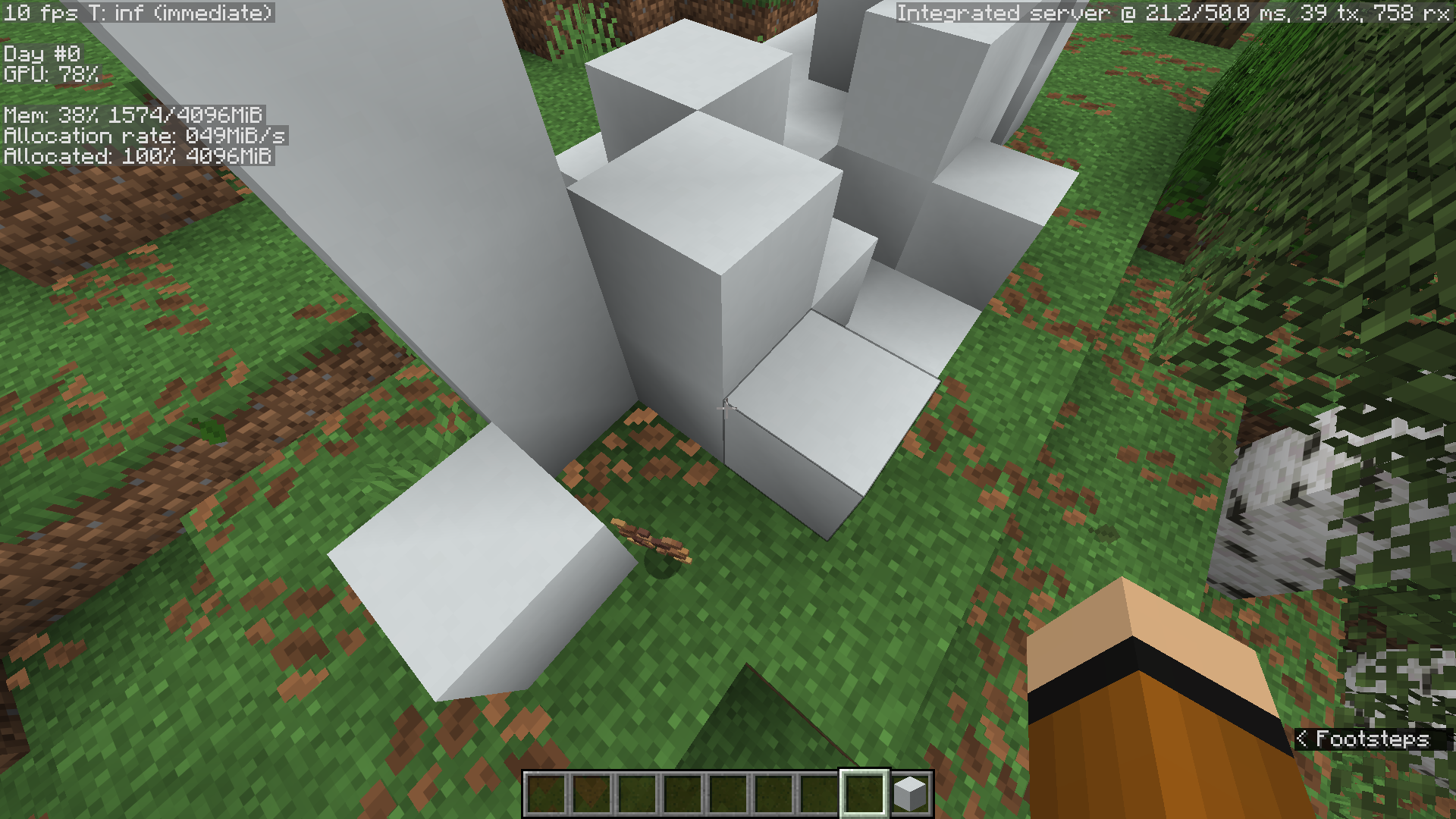

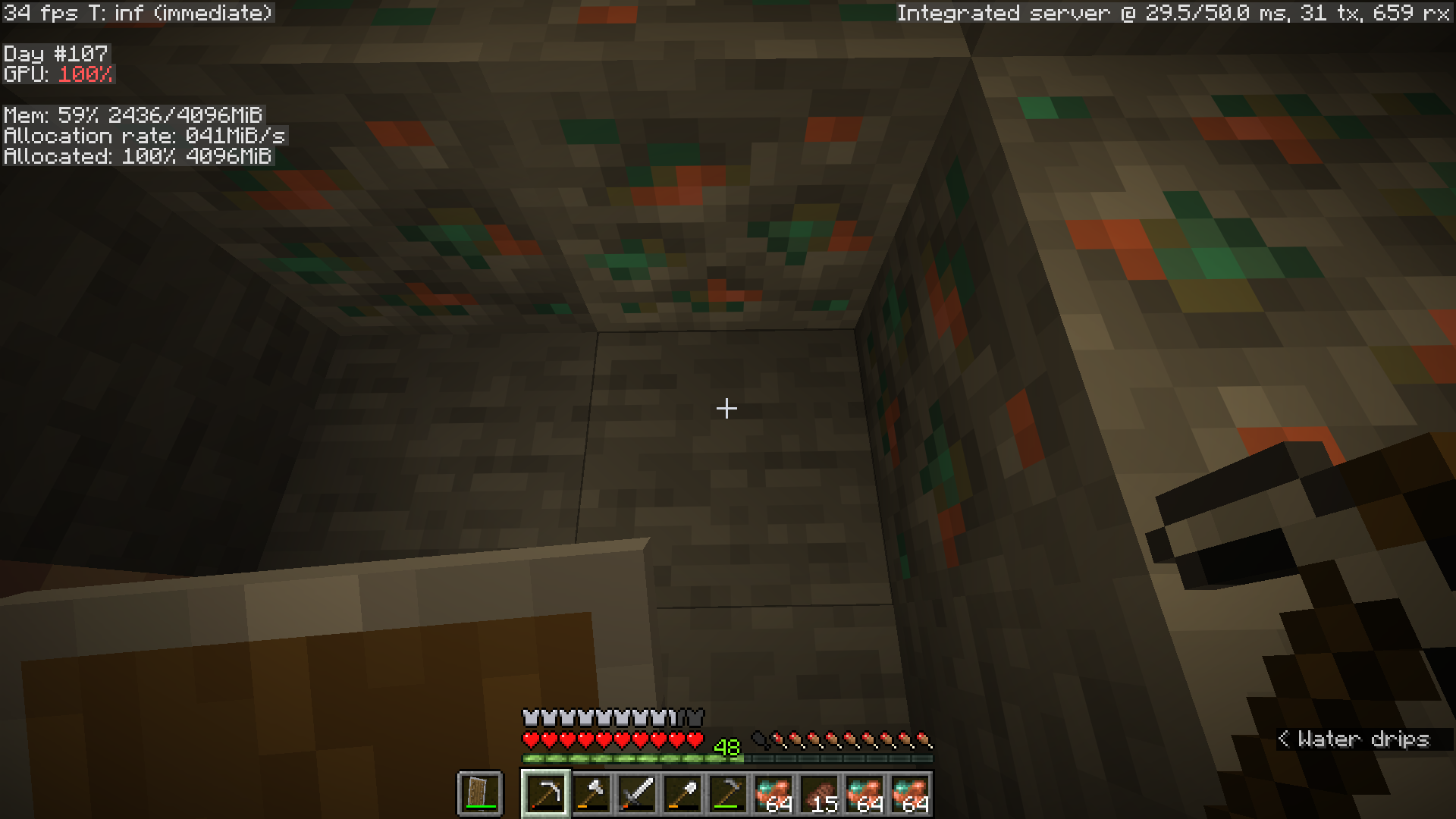

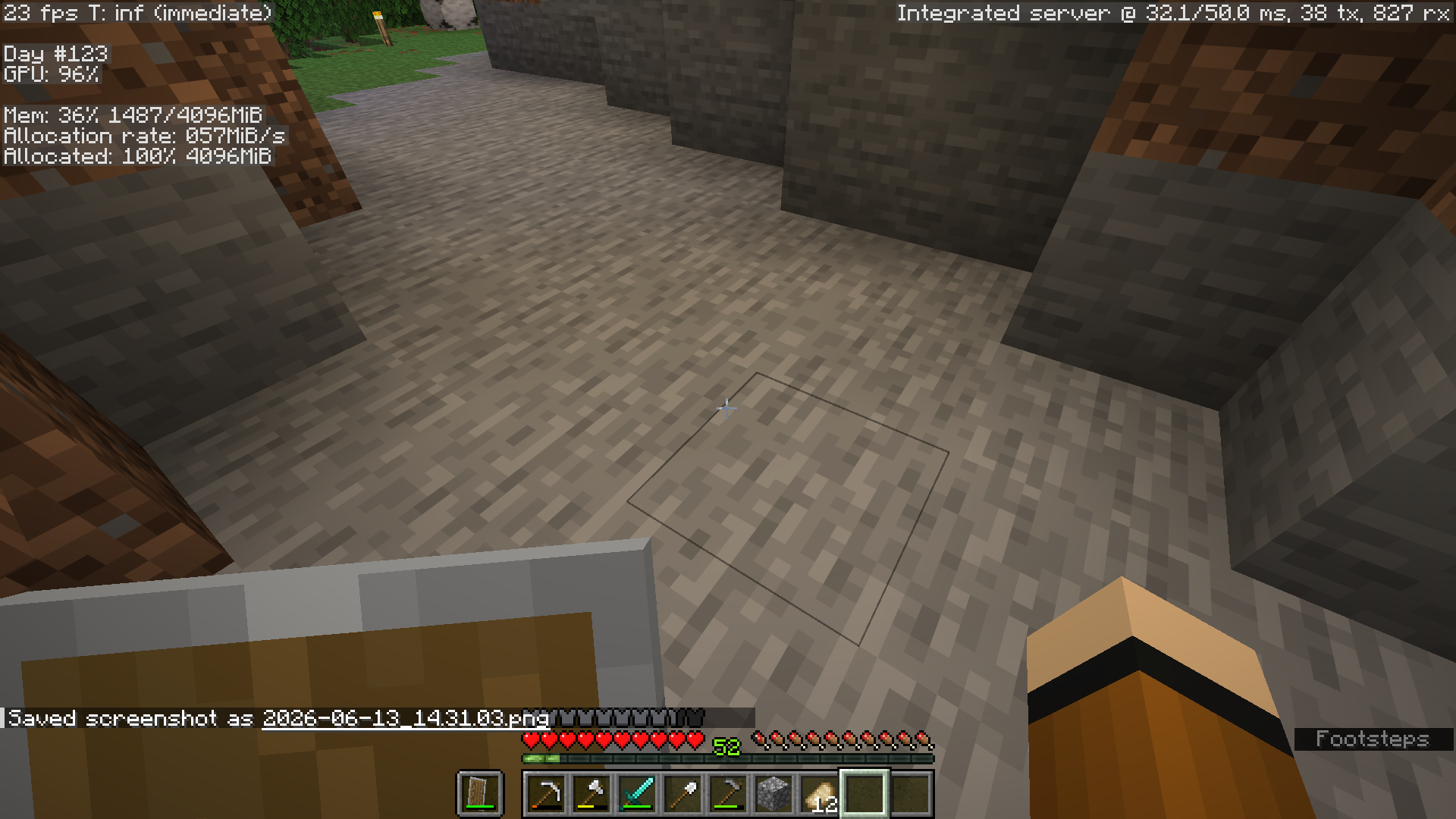

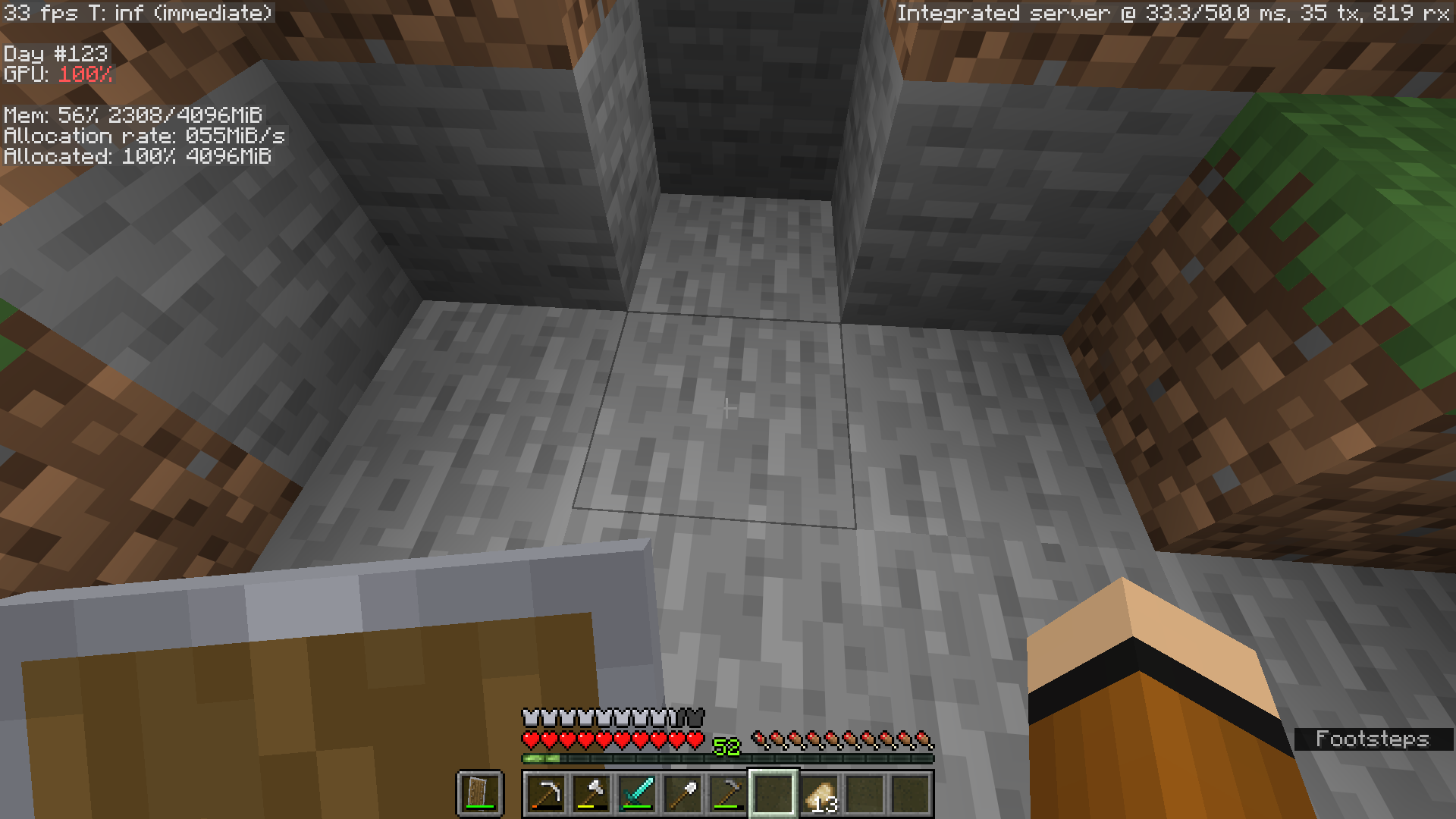

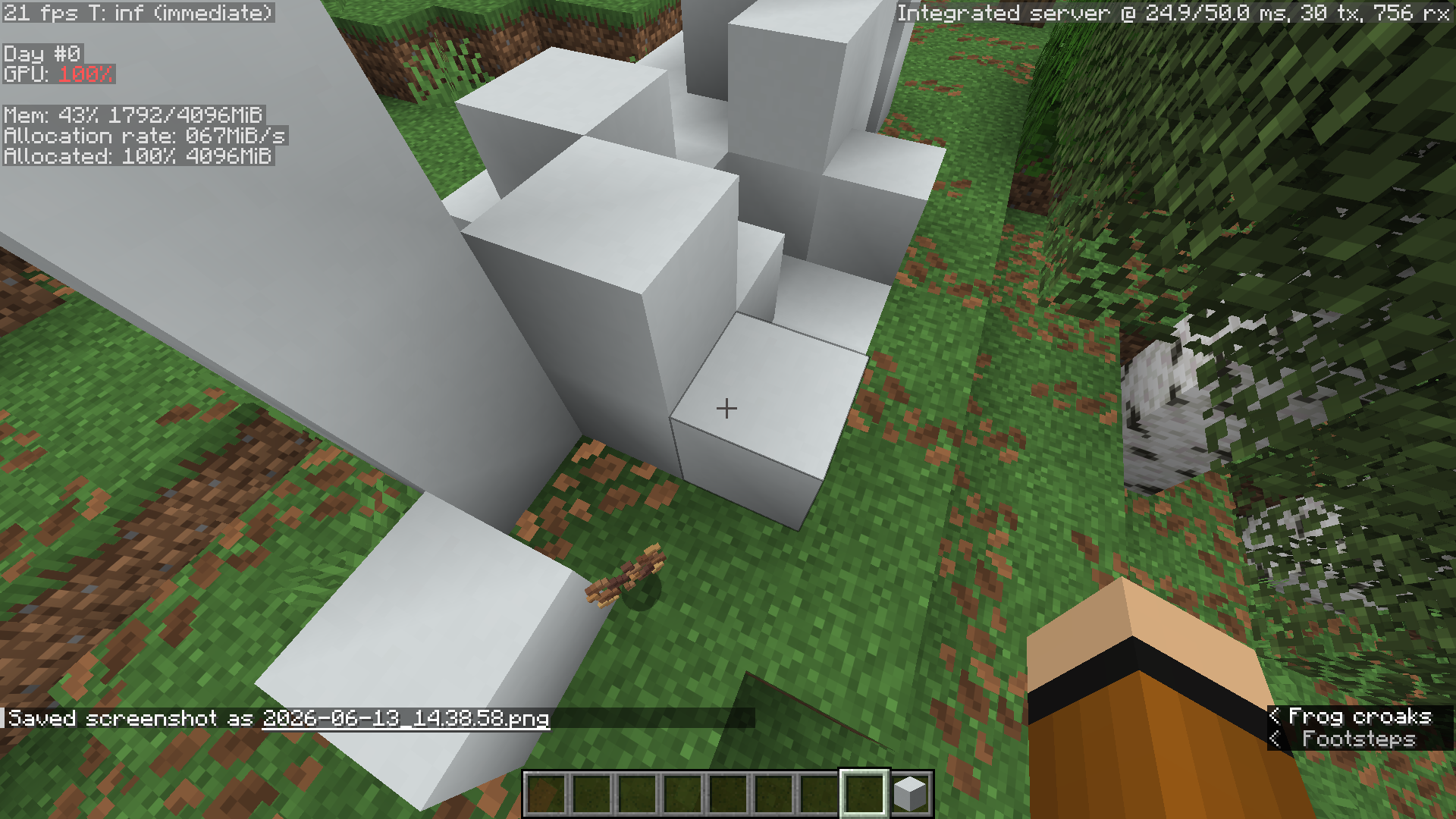

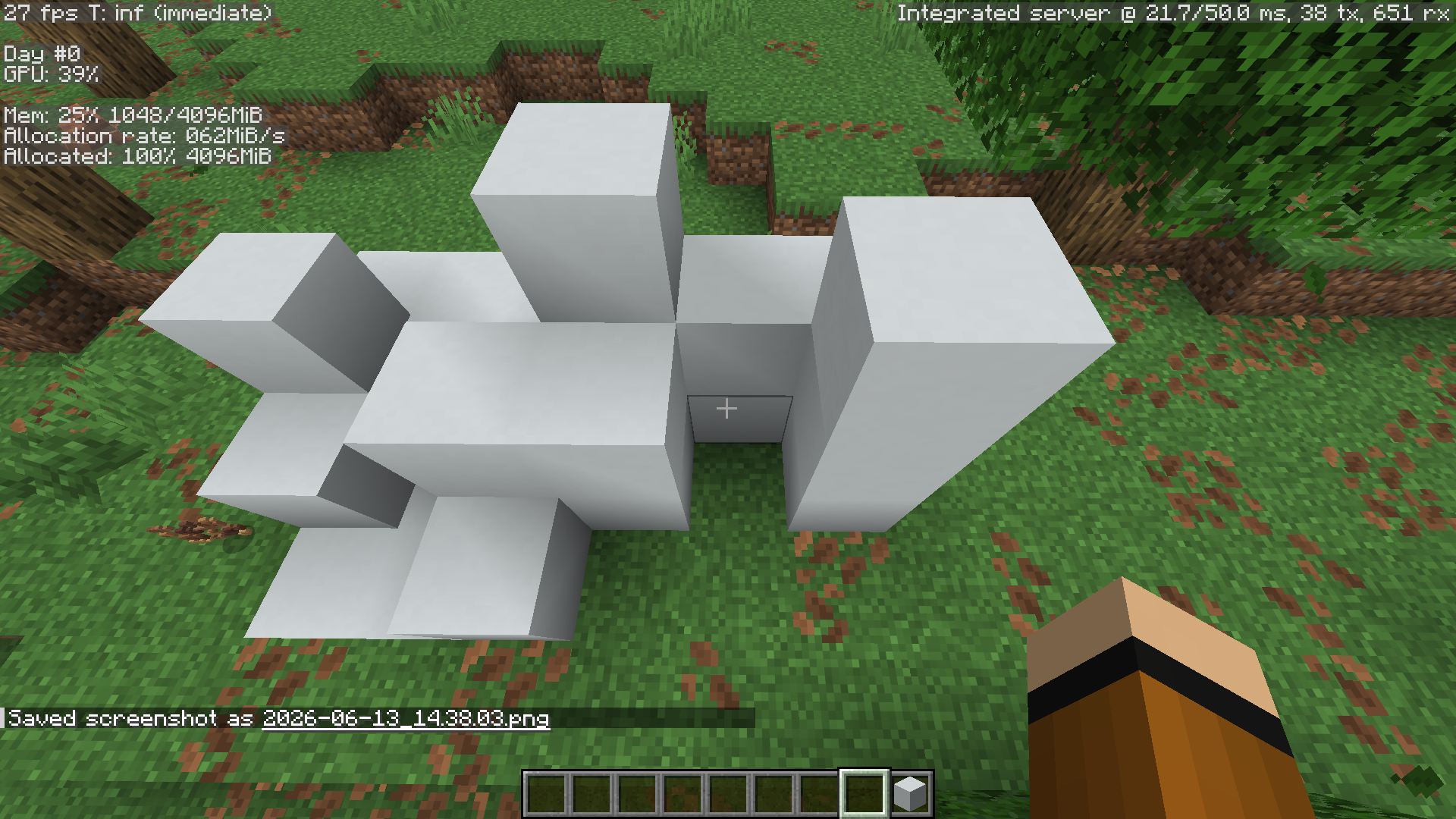

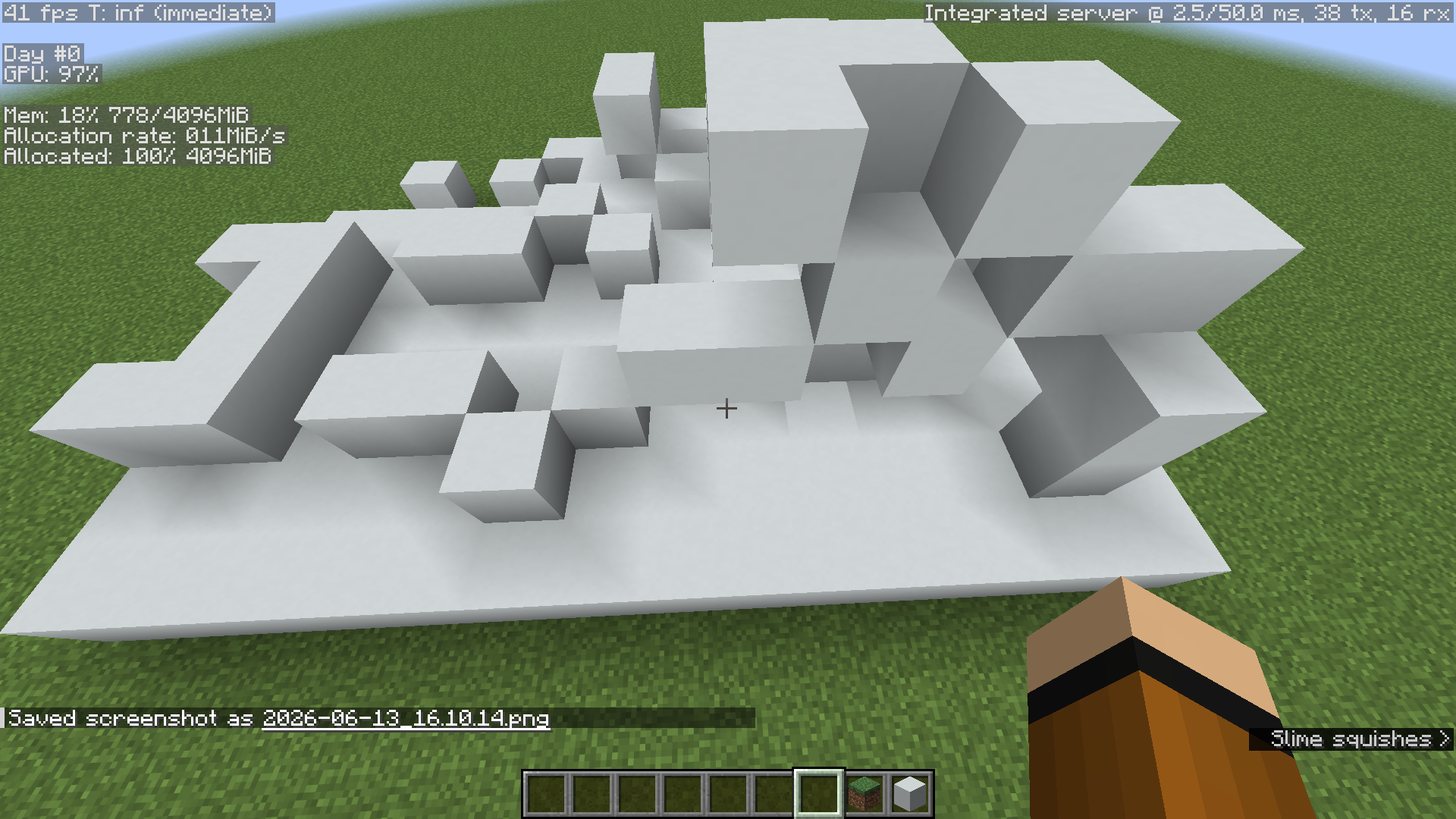

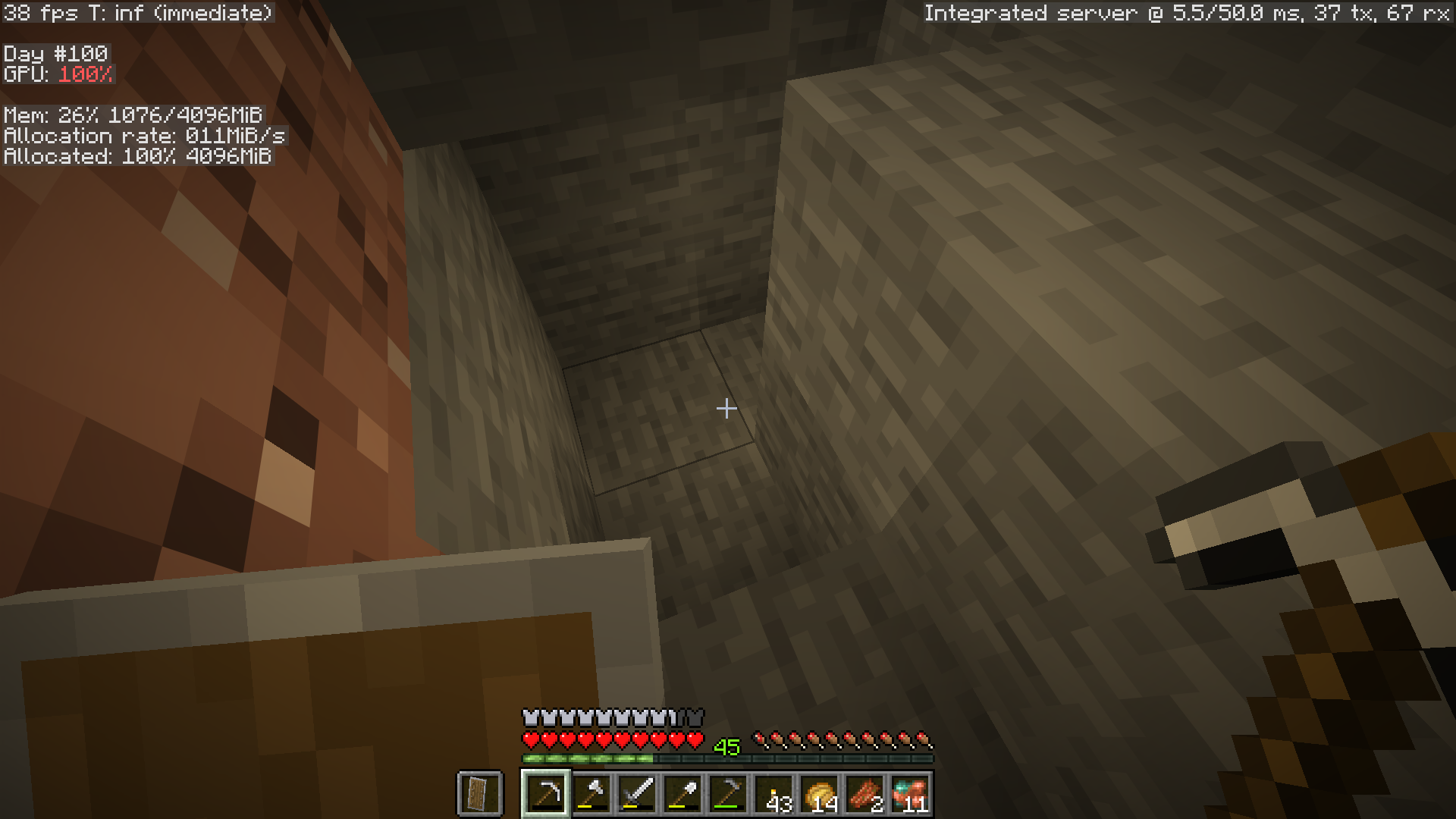

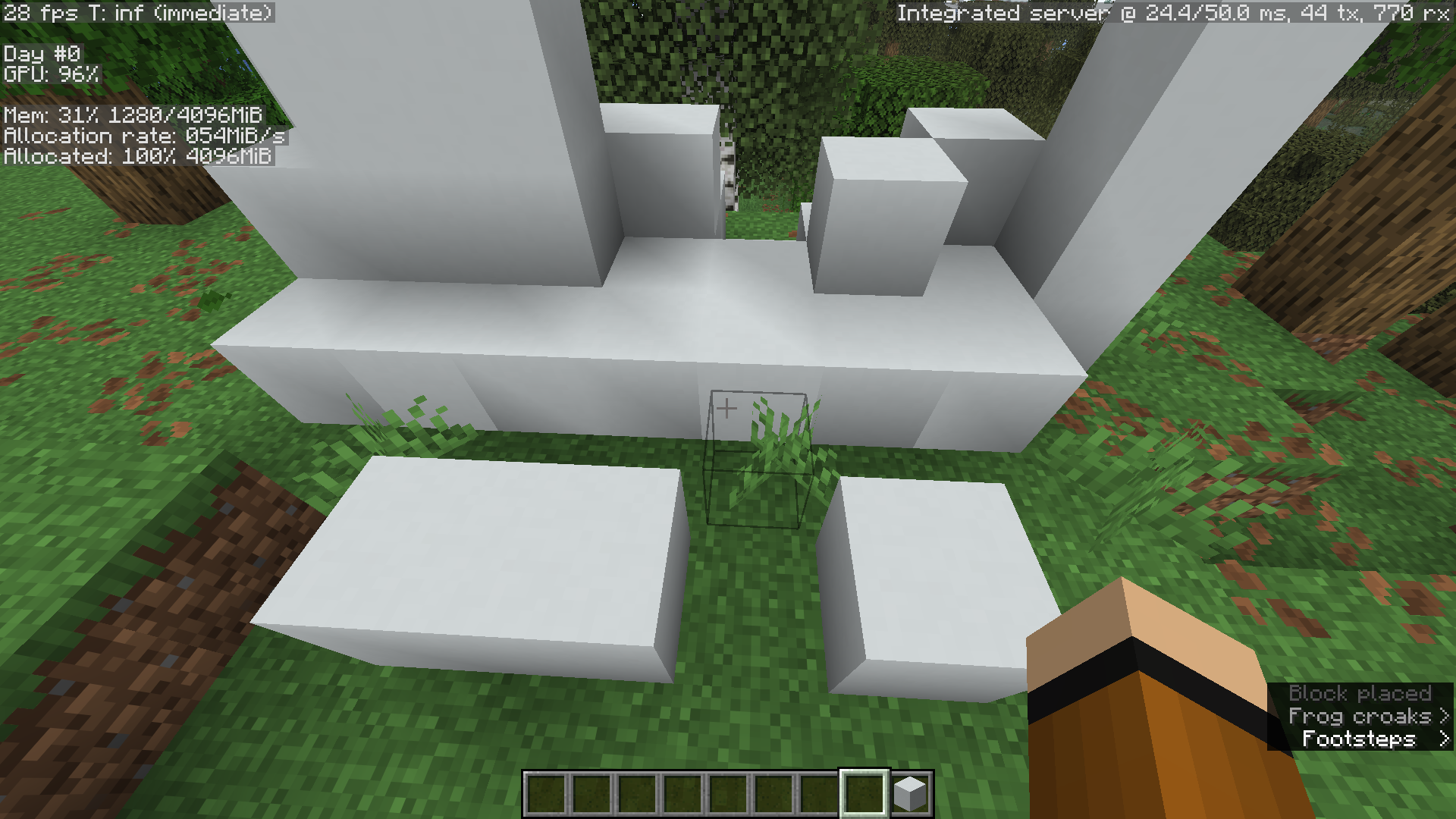

As you can see in the 2 images, the first one (The bugged version), has inconsistent lighting travelling from one block to the next, the corners don't match up. This is primarily noticeable in 1 wide staircases underground, and for good reason.

Basically what is happening is that the render code is checking the transparency of blocks with an incorrect offset. When you get your coordinates wrong you're bound to get some weird results.

This code is drawing the bottom face.

if (this.renderMinY <= 0.0D)
{
     --y;
}

this.aoBrightnessXYNN = par1Block.getMixedBrightnessForBlock(this.blockAccess, x - 1, y, z);
this.aoBrightnessYZNN = par1Block.getMixedBrightnessForBlock(this.blockAccess, x, y, z - 1);
this.aoBrightnessYZNP = par1Block.getMixedBrightnessForBlock(this.blockAccess, x, y, z + 1);
this.aoBrightnessXYPN = par1Block.getMixedBrightnessForBlock(this.blockAccess, x + 1, y, z);
this.aoLightValueScratchXYNN = par1Block.getAmbientOcclusionLightValue(this.blockAccess, x - 1, y, z);
this.aoLightValueScratchYZNN = par1Block.getAmbientOcclusionLightValue(this.blockAccess, x, y, z - 1);
this.aoLightValueScratchYZNP = par1Block.getAmbientOcclusionLightValue(this.blockAccess, x, y, z + 1);
this.aoLightValueScratchXYPN = par1Block.getAmbientOcclusionLightValue(this.blockAccess, x + 1, y, z);
transparencyXYPN = Block.canBlockGrass[this.blockAccess.getBlockId(x + 1, y - 1, z)];
transparencyXYNN = Block.canBlockGrass[this.blockAccess.getBlockId(x - 1, y - 1, z)];
transparencyYZNP = Block.canBlockGrass[this.blockAccess.getBlockId(x, y - 1, z + 1)];
transparencyYZNN = Block.canBlockGrass[this.blockAccess.getBlockId(x, y - 1, z - 1)];

if (!transparencyYZNN && !transparencyXYNN)
{
     this.aoLightValueScratchXYZNNN = this.aoLightValueScratchXYNN;
     this.aoBrightnessXYZNNN = this.aoBrightnessXYNN;
}
else
{
     this.aoLightValueScratchXYZNNN = par1Block.getAmbientOcclusionLightValue(this.blockAccess, x - 1, y, z - 1);
     this.aoBrightnessXYZNNN = par1Block.getMixedBrightnessForBlock(this.blockAccess, x - 1, y, z - 1);
}

What it does is decrements the y value to save a bunch of subtractions since the whole next section uses "y - 1". It appears as if in the case of every face, a part was left as "y - 1" (Or any other respective coordinate changes such as "y + 1", "x - 1", "x + 1", "z - 1", "z + 1").

transparencyXYPN = Block.canBlockGrass[this.blockAccess.getBlockId(x + 1, y - 1, z)];
transparencyXYNN = Block.canBlockGrass[this.blockAccess.getBlockId(x - 1, y - 1, z)];
transparencyYZNP = Block.canBlockGrass[this.blockAccess.getBlockId(x, y - 1, z + 1)];
transparencyYZNN = Block.canBlockGrass[this.blockAccess.getBlockId(x, y - 1, z - 1)];

The way I was able to fix this was by adding 3 ints at the top of the method called xConst, yConst, zConst (or more appropriate names), set those to the coordinates passed into the function and changed the code to

transparencyXYPN = Block.canBlockGrass[this.blockAccess.getBlockId(x + 1, yConst - 1, z)];
transparencyXYNN = Block.canBlockGrass[this.blockAccess.getBlockId(x - 1, yConst - 1, z)];
transparencyYZNP = Block.canBlockGrass[this.blockAccess.getBlockId(x, yConst - 1, z + 1)];
transparencyYZNN = Block.canBlockGrass[this.blockAccess.getBlockId(x, yConst - 1, z - 1)];

This bug is both aesthetically unpleasing, but also causes the "Lava light leaking through corners" bug.

Also, while I was looking through the rendering code, I found the source of the upside-down half-slab lighting bug. A half-slab gets lit using the highest of the neighbour's light values, but it doesn't check the light value of the block below.

topBrightness = this.getSpecialBlockBrightness(par1EnumSkyBlock, par2, par3 + 1, par4);
eastBrightness = this.getSpecialBlockBrightness(par1EnumSkyBlock, par2 + 1, par3, par4);
int westBrightness = this.getSpecialBlockBrightness(par1EnumSkyBlock, par2 - 1, par3, par4);
int northBrightness = this.getSpecialBlockBrightness(par1EnumSkyBlock, par2, par3, par4 + 1);
int southBrightness = this.getSpecialBlockBrightness(par1EnumSkyBlock, par2, par3, par4 - 1);

if (eastBrightness > topBrightness)
{
	topBrightness = eastBrightness;
}

if (westBrightness > topBrightness)
{
	topBrightness = westBrightness;
}

if (northBrightness > topBrightness)
{
	topBrightness = northBrightness;
}

if (southBrightness > topBrightness)
{
	topBrightness = southBrightness;
}

return topBrightness;

The first idea that comes to mind is to push this code into the Block class so that it can be overloaded in child classes such as slabs.

Related issues

Attachments

Comments

migrated
[media][media][media][media][media][media][media][media][media][media][media][media]
migrated

This is still a concern in 1.8.1-pre3. Old bug, but still present. I recently made a report about a different issue with ambient occlusion... Best fix is to start from scratch.

migrated

Still a concern in 1.8.2.

migrated

Still a concern in 1.8.4. Added a screenshot showing a much more noticeable example.

insane96mcp

Still a concern in 1.12.1: http://i.imgur.com/xGzCGV0.png

migrated
[media]

[media]


Confirmed for 17w47b

migrated
[media]

Confirmed for 18w16a

migrated

Still a concern in 19w34a.

migrated

Still a concern in 1.14.4

Redspyro99

Still present in 1.15 Pre-release 6

migrated

is there any way i can download this fix

migrated

How do i apply the fix? I'd love to be rid of this bug.

migrated

Can you reproduce this bug in 1.16 pre release 5?



numeritos

Affects 1.16.1 and 20w27a

muzikbike

Can confirm that this affects 20w28a

Can I request ownership of this issue? Original author has not been active at all for over three quarters of a decade

[Mod] markderickson

Can confirm in 20w51a.

Avoma

Can confirm in 21w05b.

migrated

Gotta love how this bug has basically been ignored for nearly 8 years.

migrated

Can confirm in 21w10a, too.

muzikbike

The latest snapshot has made changes to smooth lighting that make this less apparent, but the bug is still there in some capacity. Should this be resolved as fixed and a ticket on the new behaviour be made?

[media]

ampolive

Relates to MC-12558.

ampolive

Can confirm in 1.17.1.

bodakugga

It appears this issue and MC-12558 were caused by the optimizations done to smooth lighting in the experimental snapshot 13w12~, which can be still dowloaded from this bug report: https://bugs.mojang.com/browse/MC-8824?focusedCommentId=55414#comment-55414

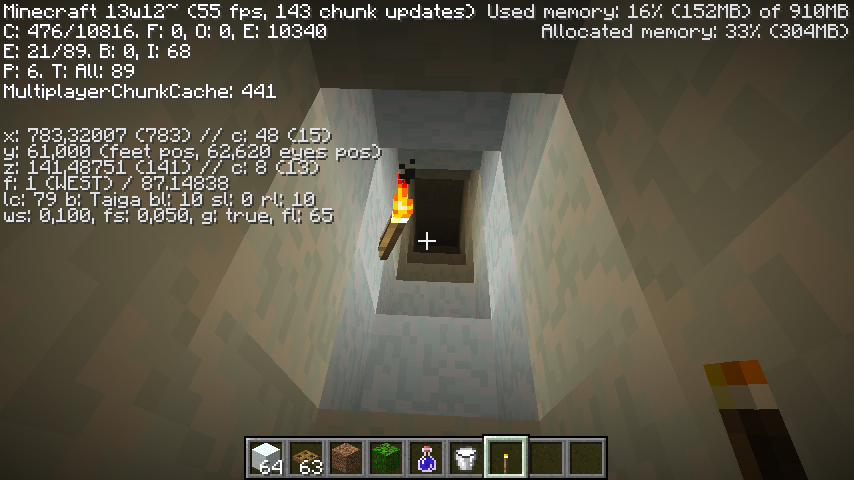

This is how a staircase structure appeared before the optimization fixes:
