The bug

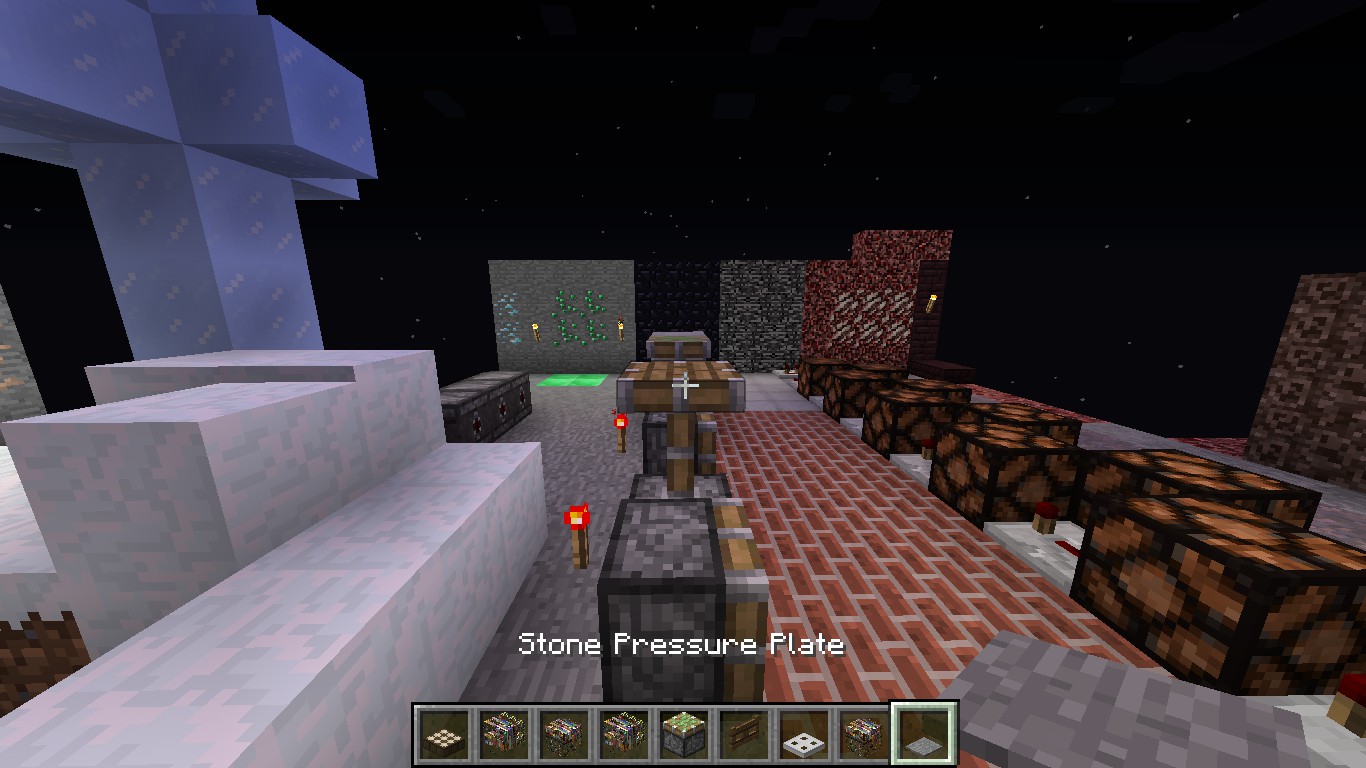

The texture for blocks using TileEntitySpecialRenderer to be rendered is not bound for a short moment when entering a world and all the time in the superflat settings. This causes these blocks to have a texture consisting out of all kind of blocks, see
.
Once the player opened a world or joined a server the field is initialized and after that the affected blocks are always rendered correctly.
Affected blocks
Last updated for 1.13.2
chest
trapped_chest
ender_chest
*_shulker_box (all colored shulker boxes, for example
white_shulker_box)beds
How to reproduce
Open Minecraft

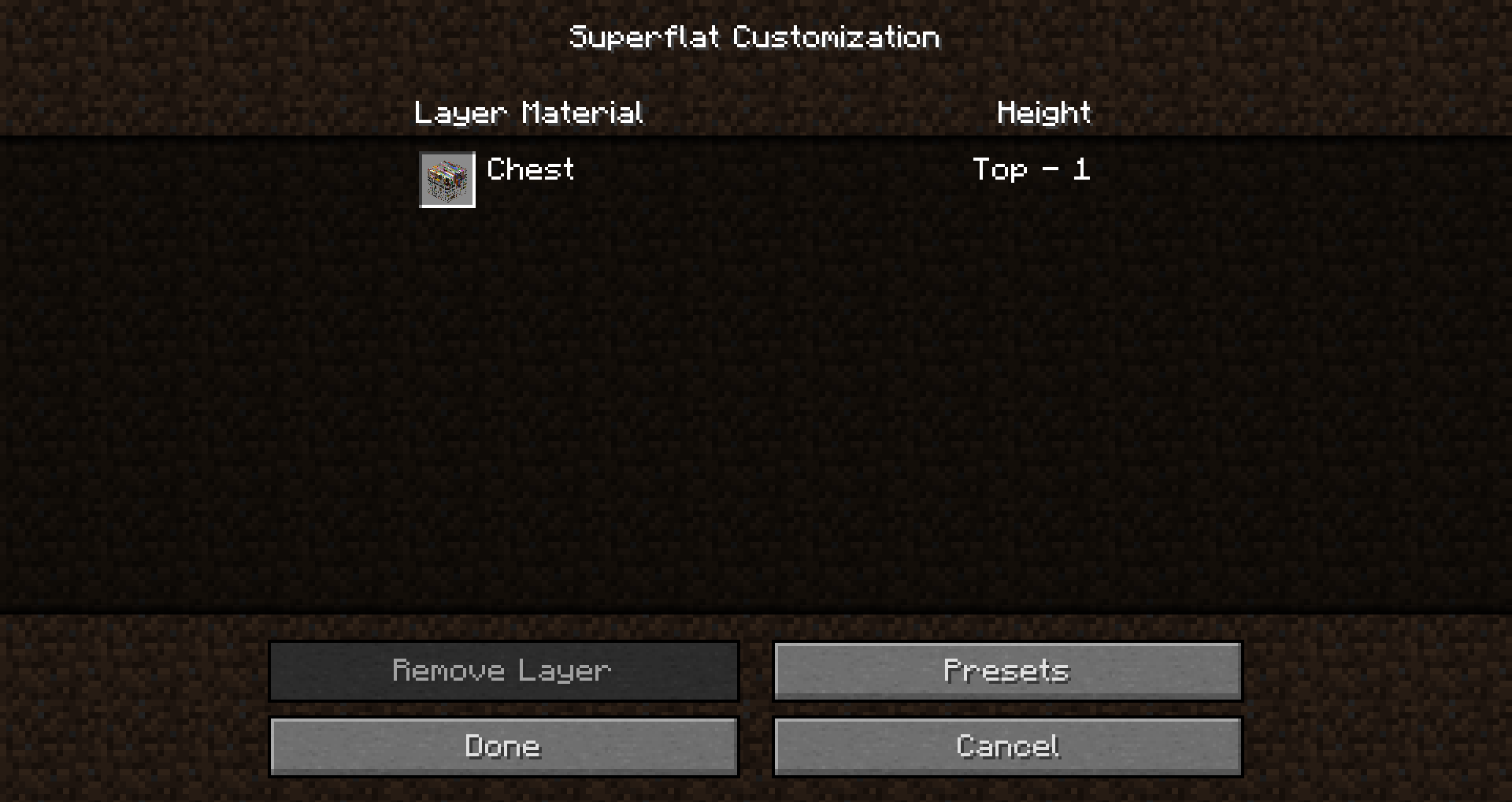

Directly open the superflat settings without doing something different before
Enter the following preset
3;minecraft:chest;1Click "Use Preset" to see the preview
Code analysis
Based on 1.11 decompiled using MCP 9.35 rc1
This seems to be happening because the field net.minecraft.client.renderer.tileentity.TileEntityRendererDispatcher.renderEngine is still null.
Environment
– System Details –
Details:
Operating System: Windows 7 (amd64) version 6.1
Java Version: 1.8.0_25, Oracle Corporation
Java VM Version: Java HotSpot(TM) 64-Bit Server VM (mixed mode), Oracle Corporation
Memory: 141776208 bytes (135 MB) / 295473152 bytes (281 MB) up to 1060372480 bytes (1011 MB)
JVM Flags: 6 total; -XX:HeapDumpPath=MojangTricksIntelDriversForPerformance_javaw.exe_minecraft.exe.heapdump -Xmx1G -XX:+UseConcMarkSweepGC -XX:+CMSIncrementalMode -XX:-UseAdaptiveSizePolicy -Xmn128M
IntCache: cache: 0, tcache: 0, allocated: 0, tallocated: 0
Launched Version: 1.11.2
LWJGL: 2.9.4
OpenGL: AMD Radeon HD 6800 Series GL version 4.5.13417 Compatibility Profile Context 15.301.1901.0, ATI Technologies Inc.
GL Caps: Using GL 1.3 multitexturing.
Using GL 1.3 texture combiners.
Using framebuffer objects because OpenGL 3.0 is supported and separate blending is supported.
Shaders are available because OpenGL 2.1 is supported.
VBOs are available because OpenGL 1.5 is supported.
Using VBOs: Yes
Is Modded: Probably not. Jar signature remains and client brand is untouched.
Type: Client (map_client.txt)
Resource Packs:
Current Language: English (US)
Profiler Position: N/A (disabled)
CPU: 6x AMD Phenom(tm) II X6 1055T Processor
Linked issues
is duplicated by 4
MC-12788
Custom SuperFlat World Gui graphical glitch with Chests / Ender Chests / Trapped Chests / Beacon Blocks
Resolved
MC-110354
Containers (Shulker Boxes & Chests) Look Corrupted In Hotbar On First World Load
Resolved
MC-141331
Bed texture shows texture atlas on loading world
Resolved
MC-158898
Shulker boxes don't render properly in superflat layers overview
Resolved
relates to 4
MC-70806
Blocks with a data value > 0 have missing texture in superflat customization
Resolved
MC-31818
When using shaders with fast graphics the chest icon is messed up and player model in inventory is backwards
Resolved
MC-47400
Chest lids missing / Depth order of chests wrong
Resolved
MC-49203
Rendering depth of beacon and ender chest in superflat preview is wrong
Resolved
Attachments
Comments 8
I agree close MC-12788
Do you mean when one of the blocks is in an area a map shows or is there a bug with maps I am not aware of?
I was referring to MC-86736.
It might have been a similar issue but probably not caused by the same bug. Additionally I cannot reproduce MC-86736 for 17w06a.
I assume the field the report is talking about is net.minecraft.client.renderer.blockentity.BlockEntityRenderDispatcher.textureManager (Mojang mapping, 1.15-pre1). It looks like at least for the superflat creation page it is still not set (based on the code, have not debugged it). However, I cannot reproduce it anymore either.
Resolving as "Fixed".
Duplicate of MC-12788, but I suggest to leave this report open as it is more detailed. Should close MC-12788 instead.
