The bug
The End generation is broken at long distances since 18w46a.
In the End, the terrain stops generating and then generates again from a certain distance from the center of the End, according to a ring pattern.
This donut-shaped pattern repeats over and over to the edge of the world on a regular basis, starting at 370,720 blocks from the center of the End.
How to reproduce
Use the following commands to teleport you:
/execute in minecraft:the_end run tp @s 370720 90 0
/execute in minecraft:the_end run tp @s 21007528 90 0
/execute in minecraft:the_end run tp @s 21010807 90 0
/execute in minecraft:the_end run tp @s 21377192 90 0

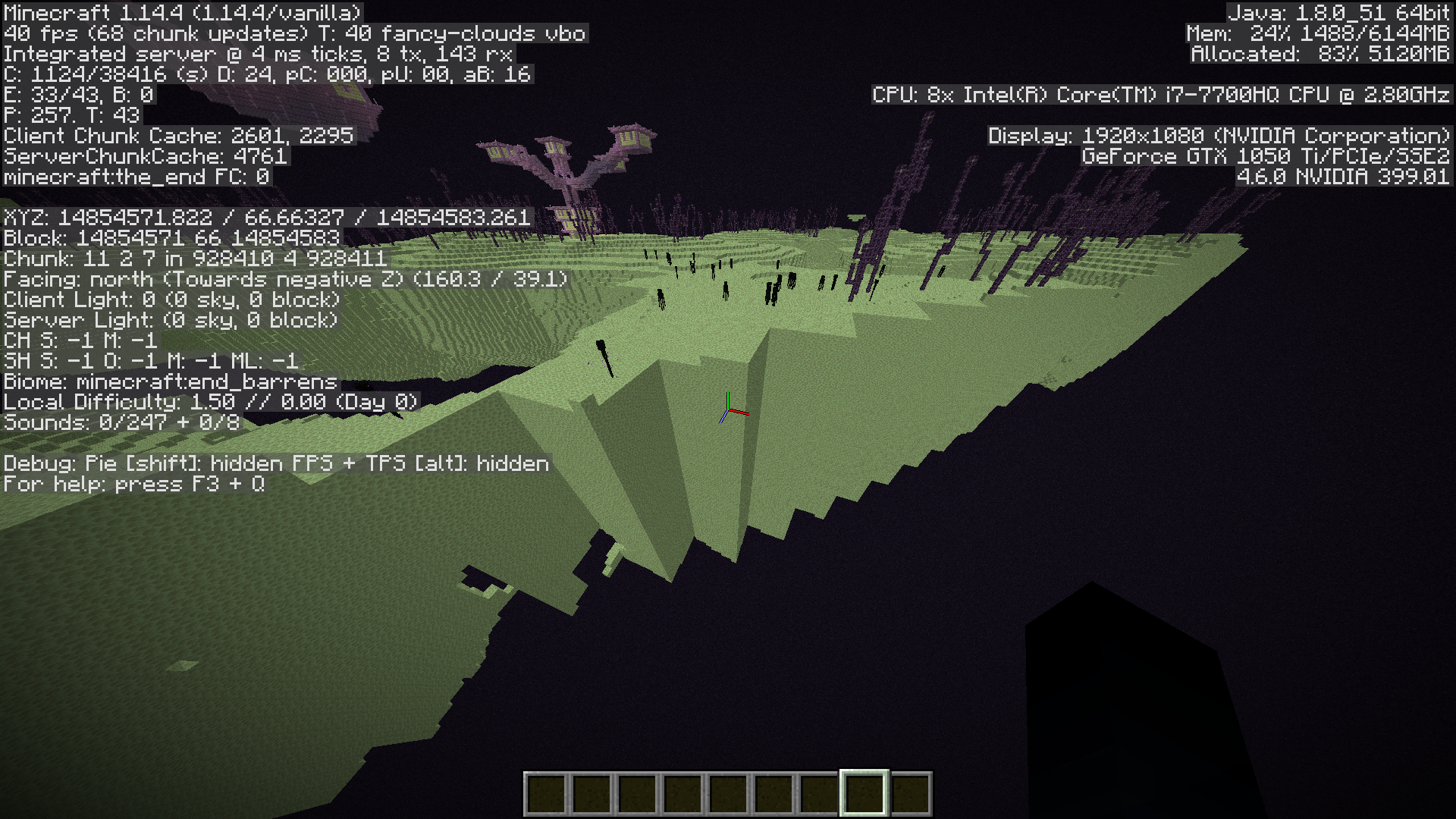

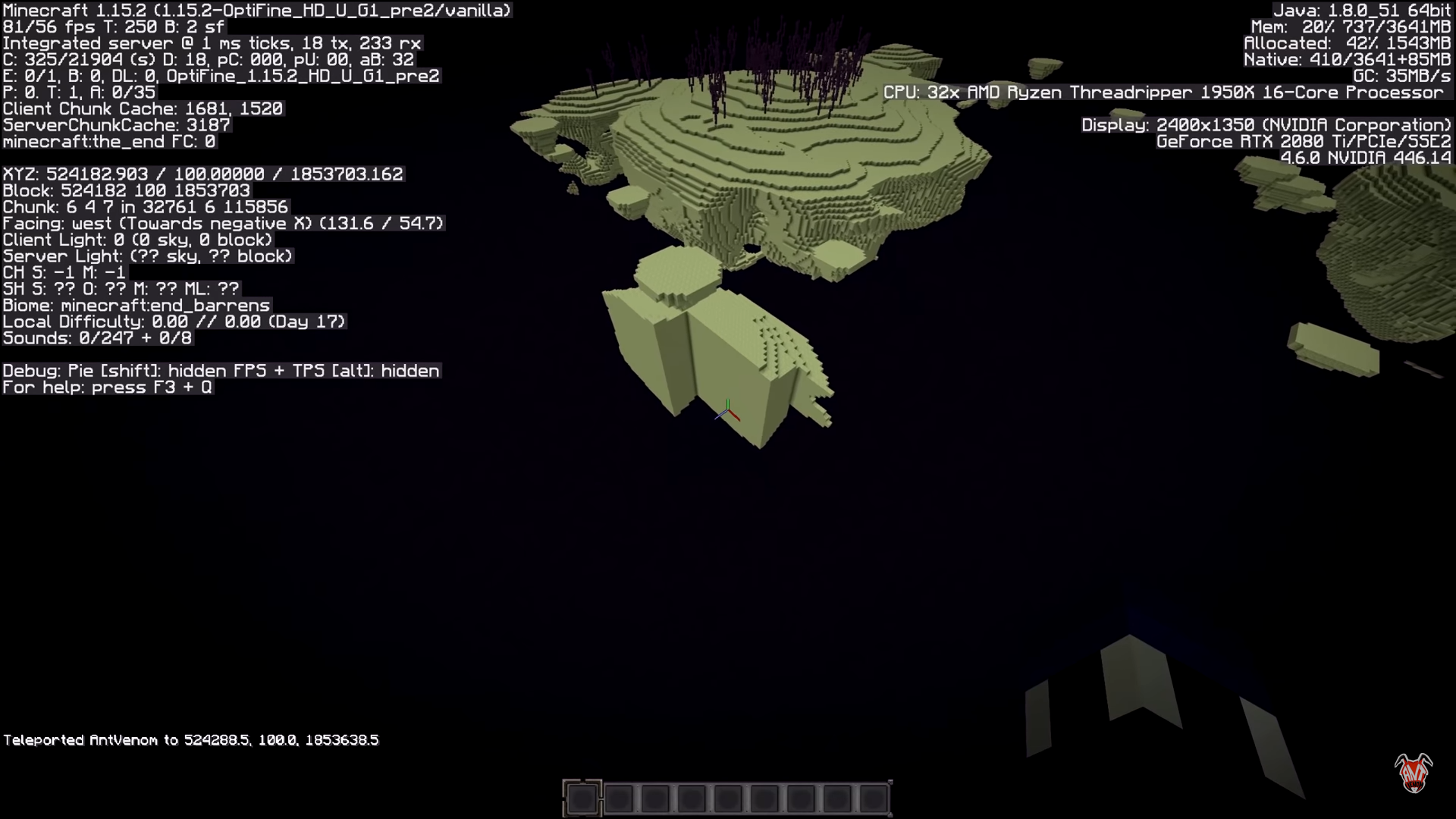

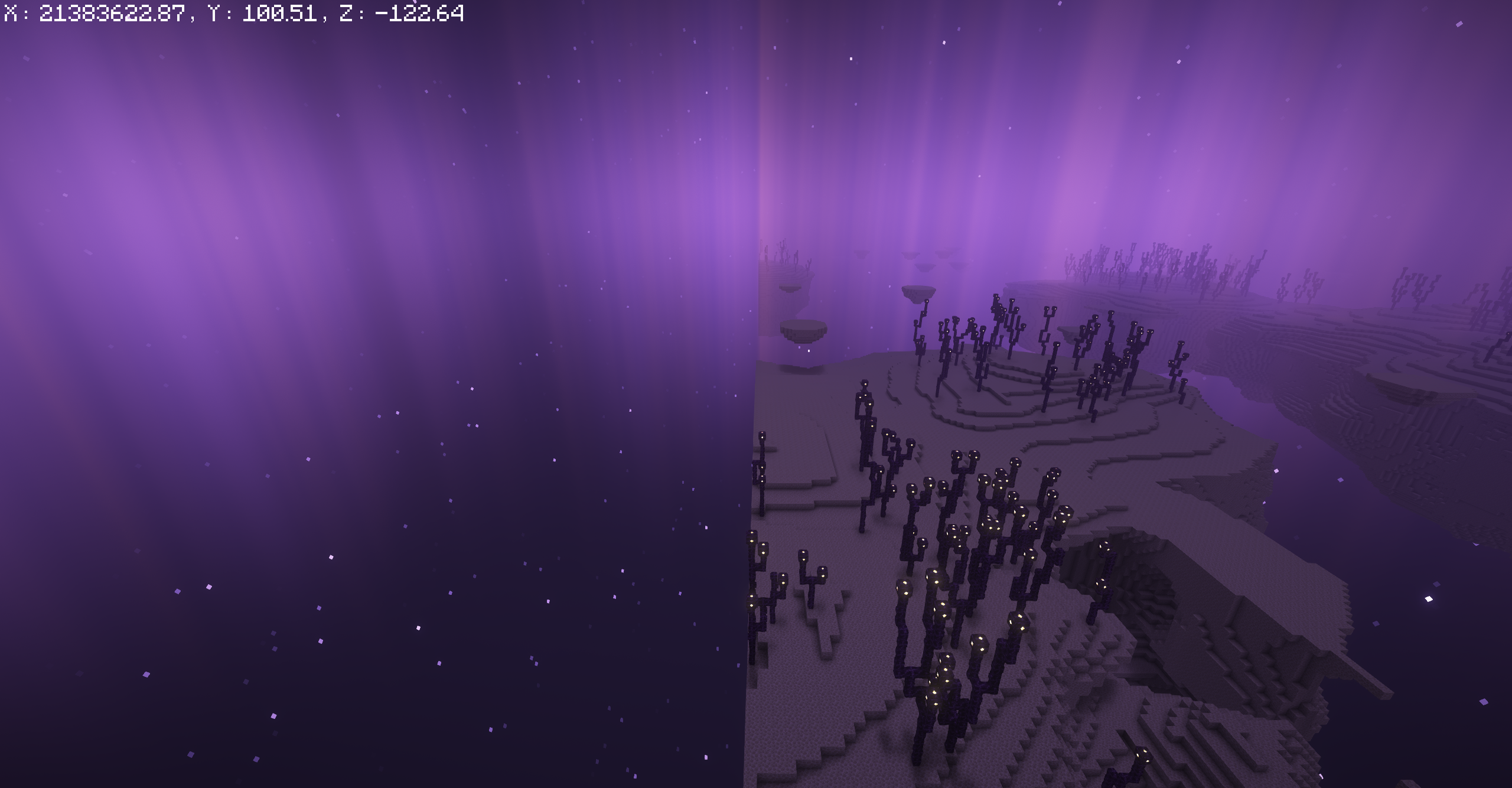

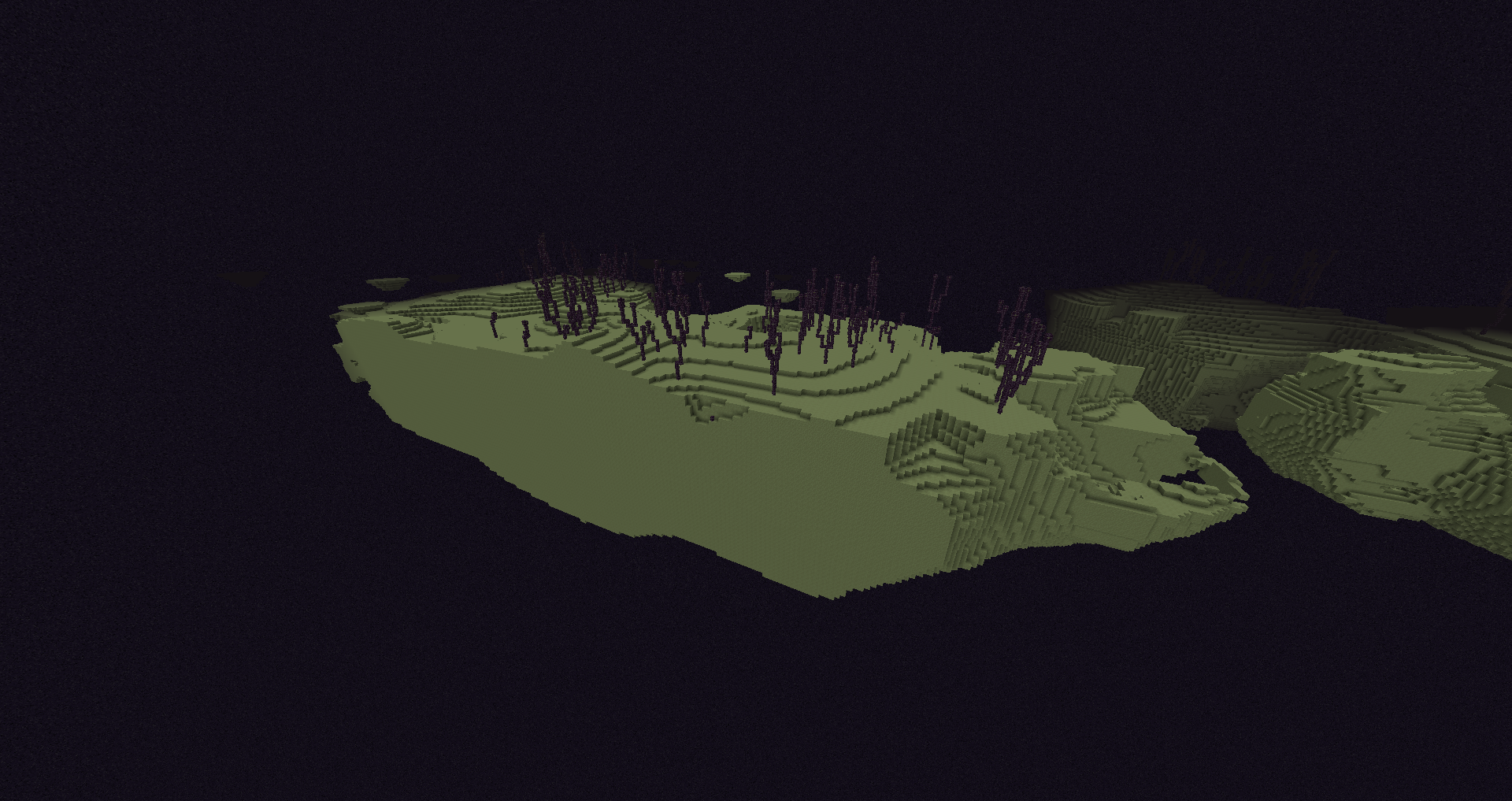

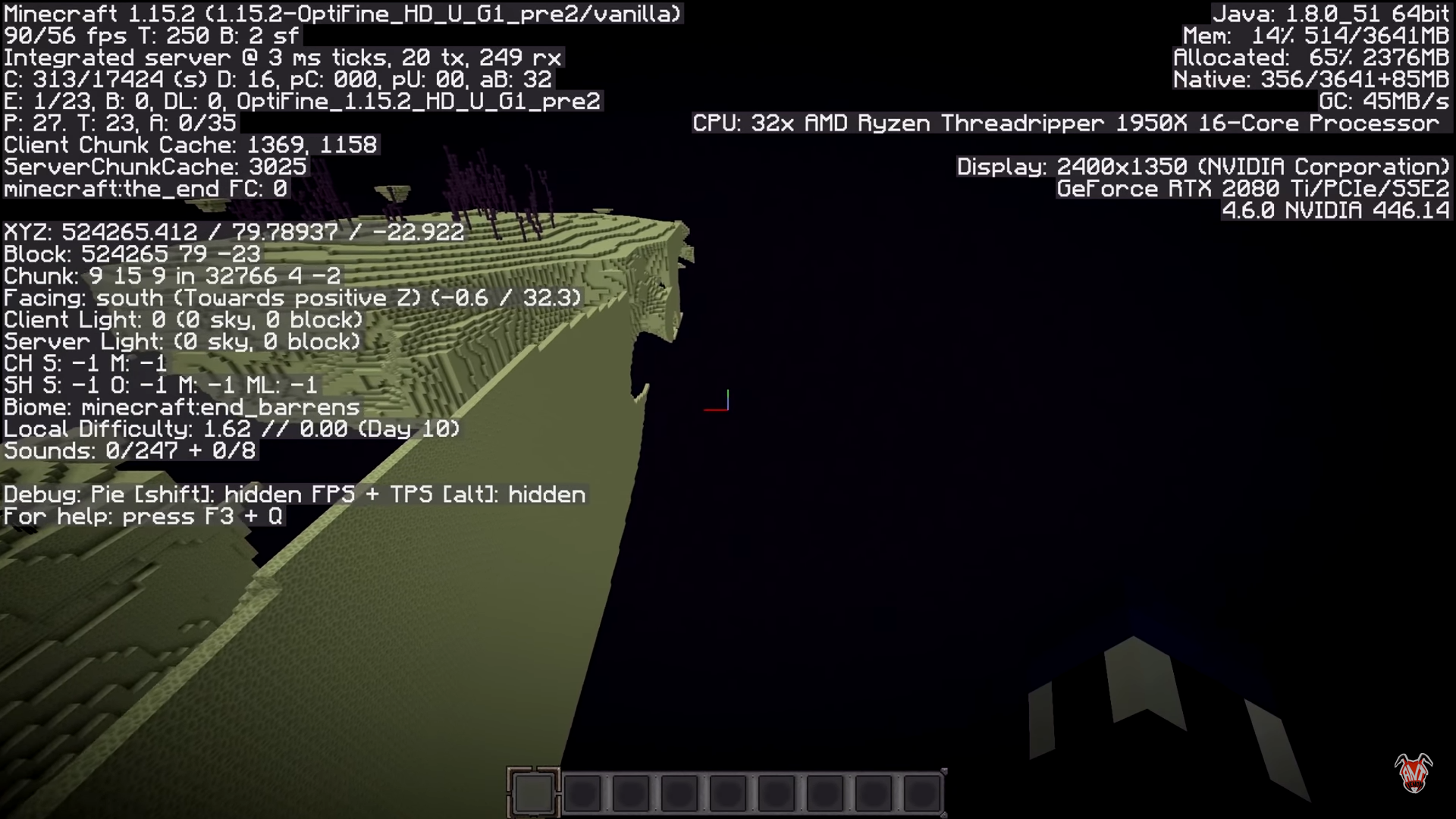

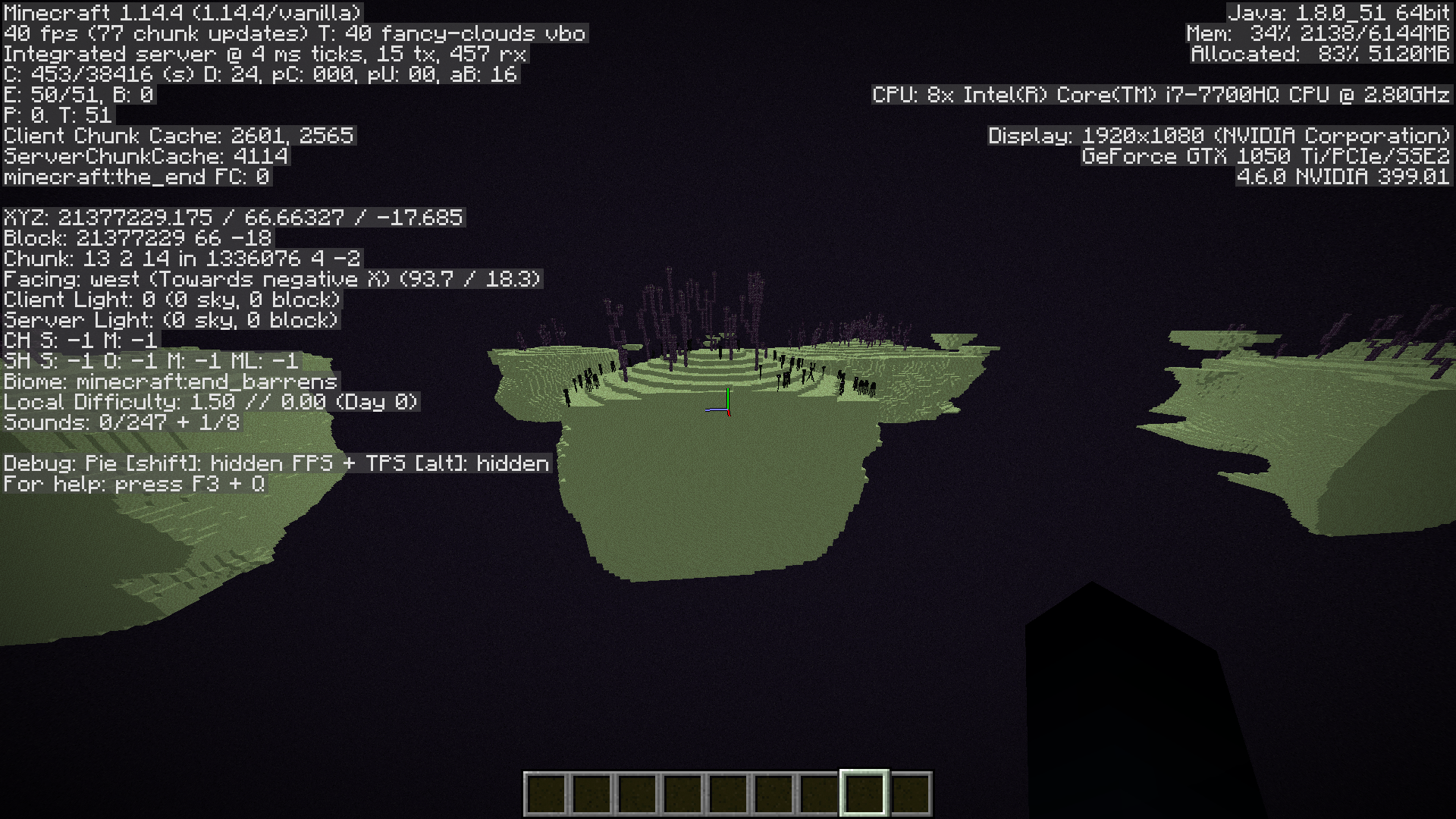

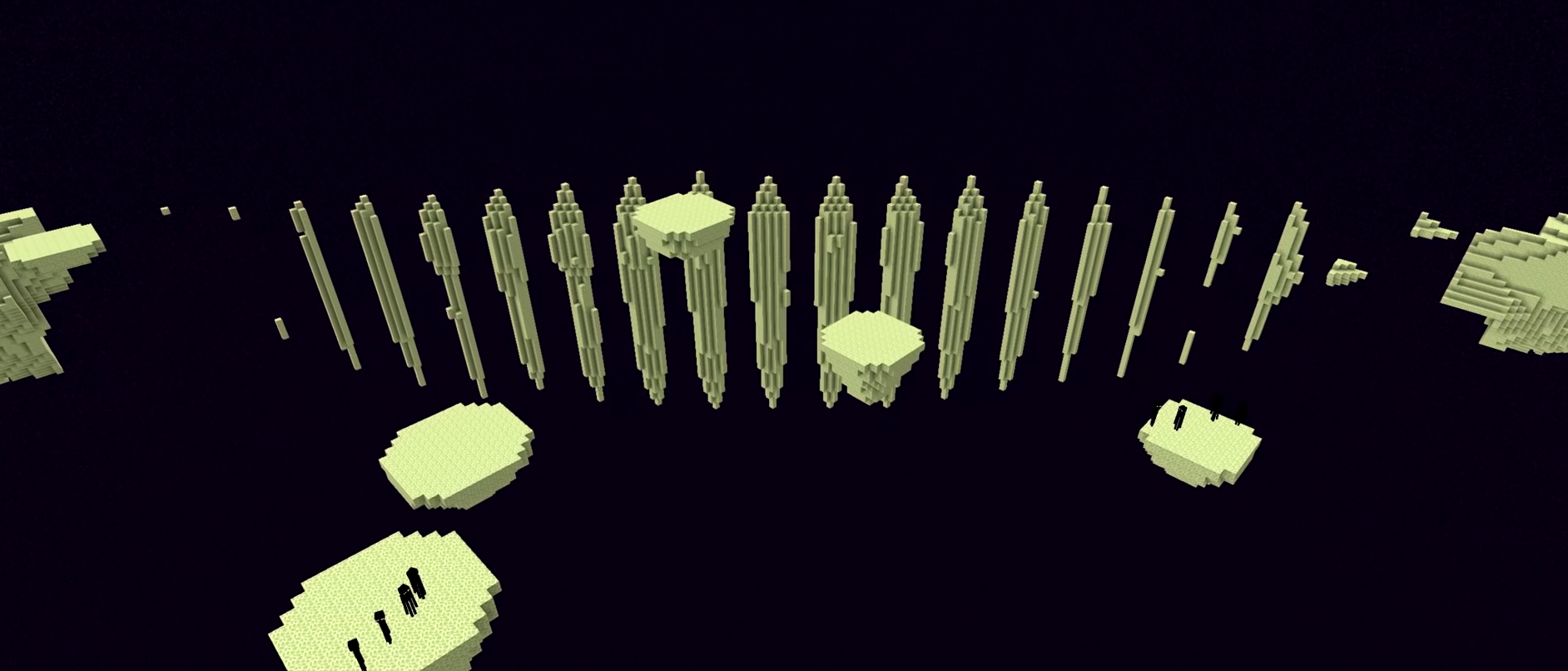

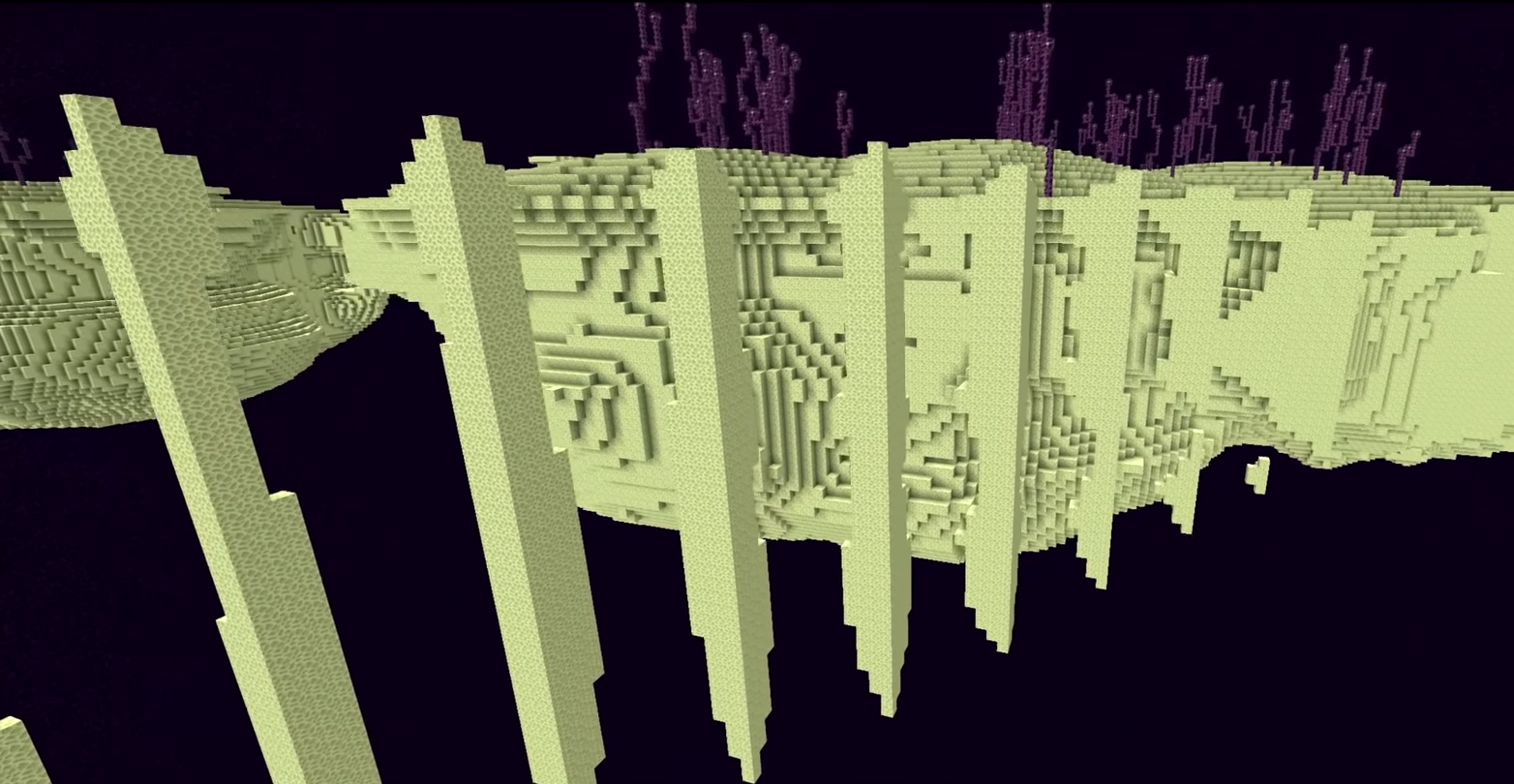

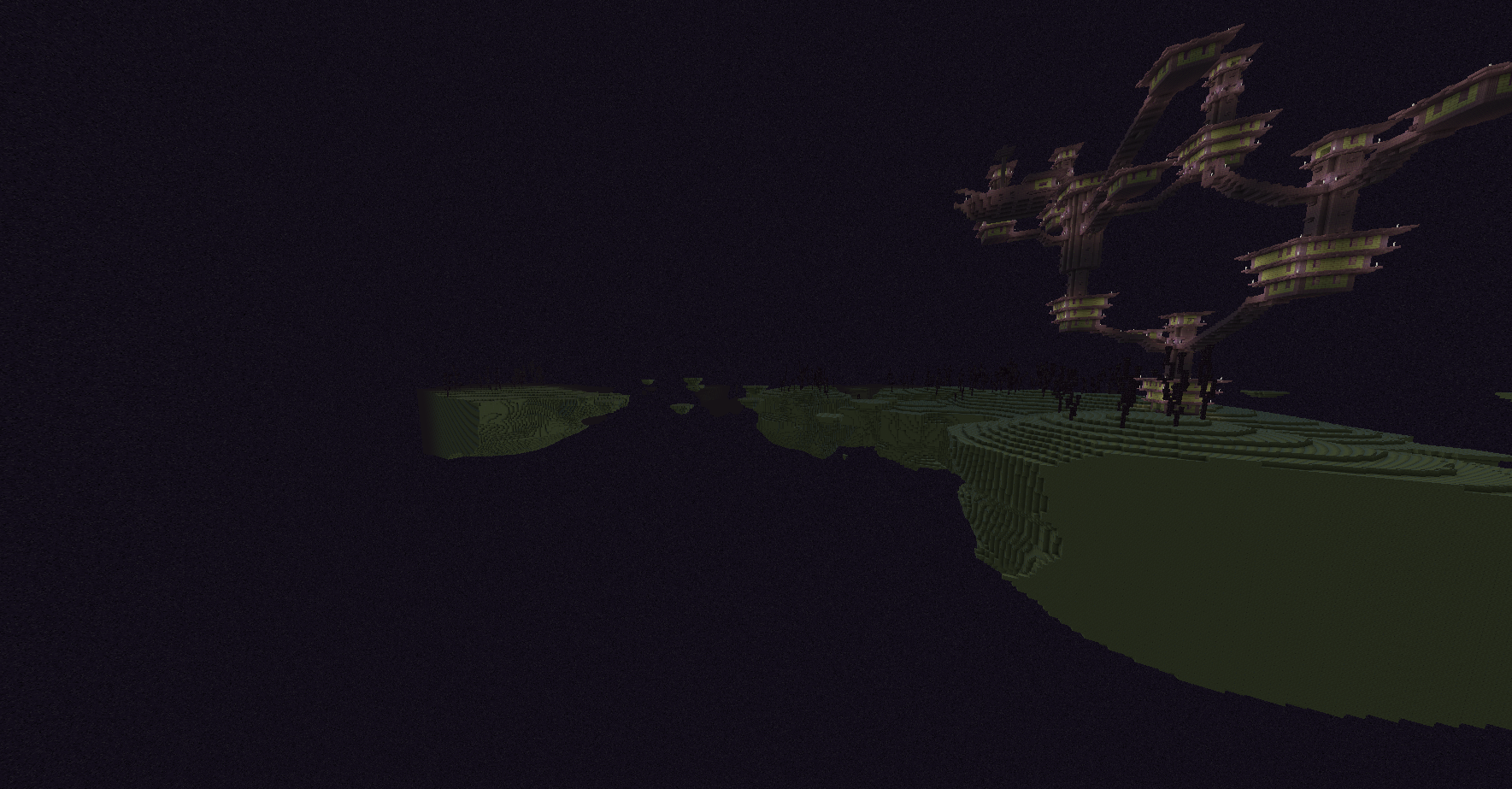

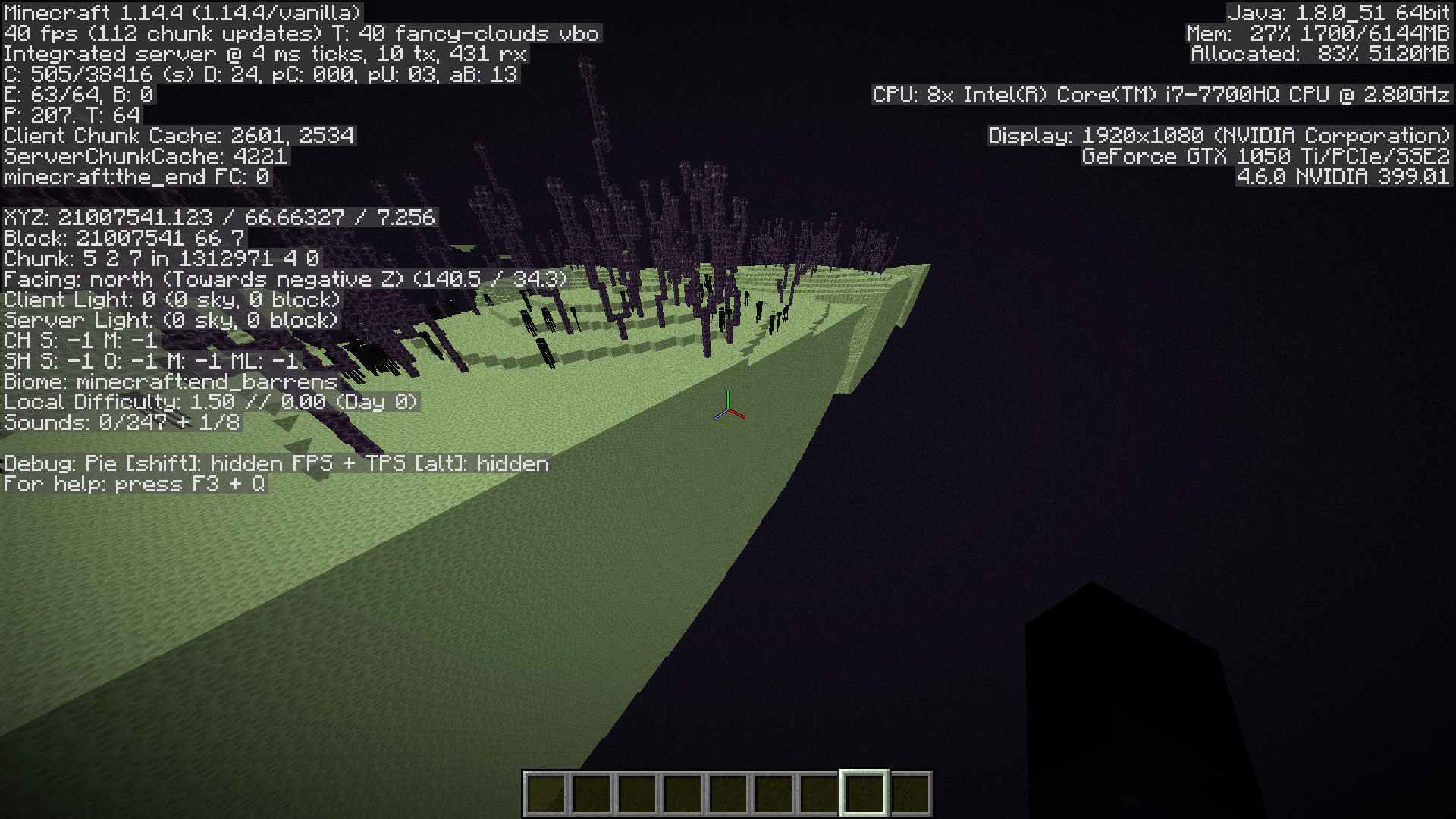

/execute in minecraft:the_end run tp @s 21380415 90 0Examples
[media][media][media]
[media][media]

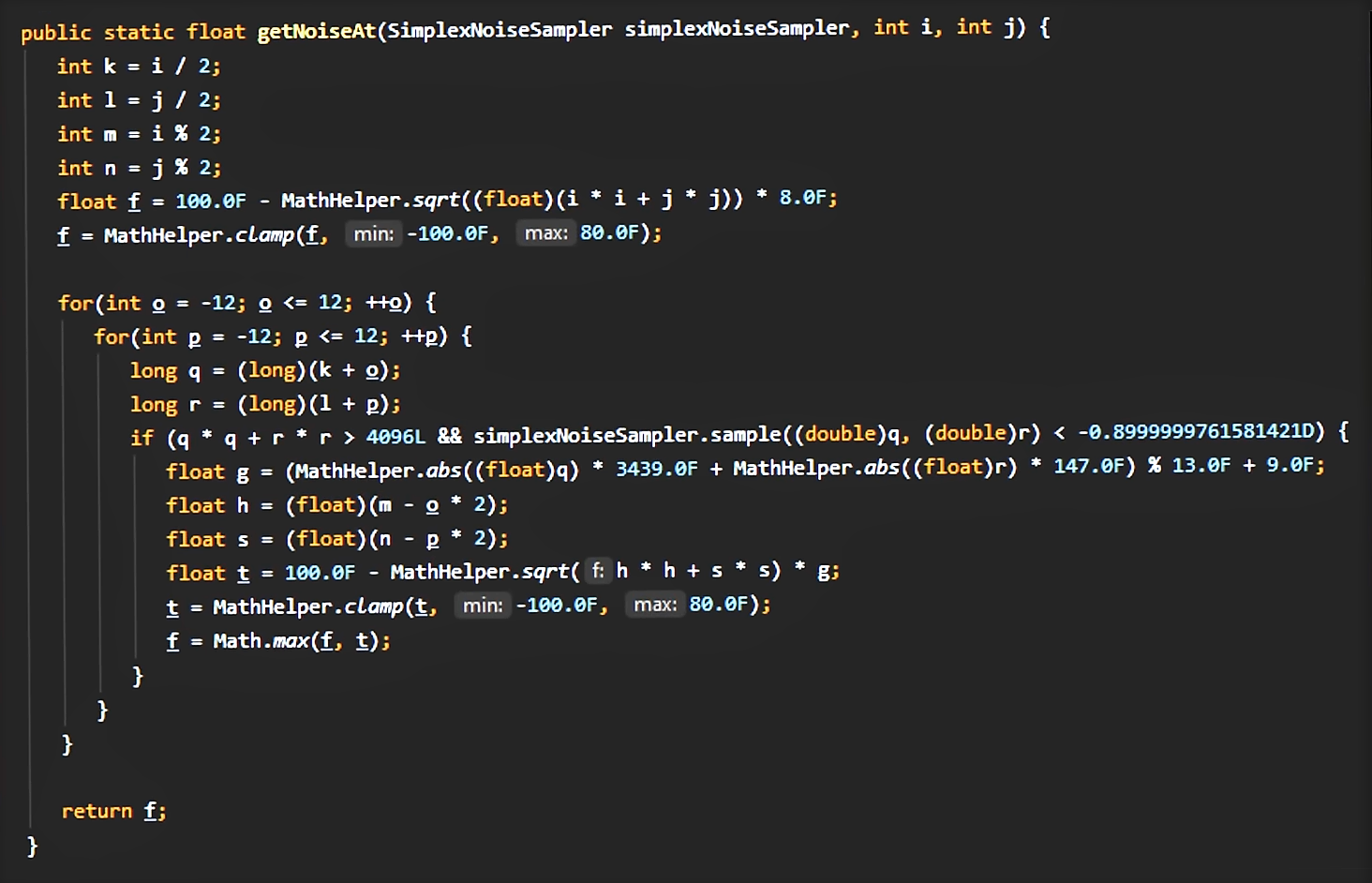

Code analysis
The code is trying to process numbers that are much larger than what Minecraft is actually capable of for its world terrain noise which causes part of the terrain noise to generate numbers that ultimatly get read as NaN (Not a Number) and causes the terrain generation to fail outright.

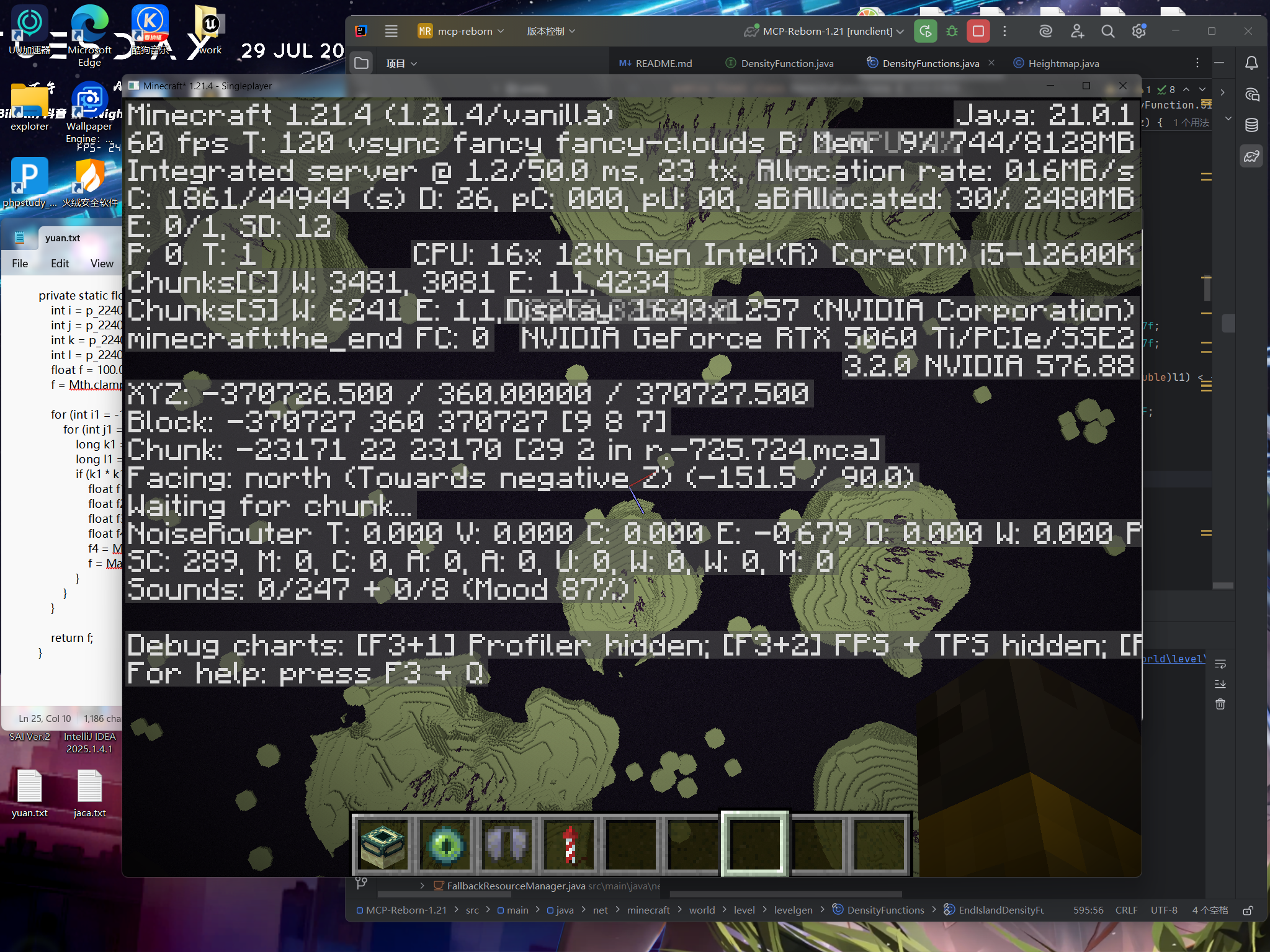

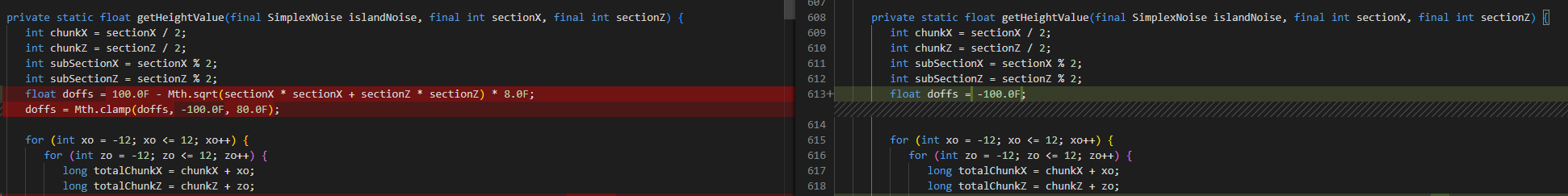

[media]For more information and a possible fix, see this comment from @unknown.
Source
Here is the source used to complete this ticket (examples, code analysis, visualization of what's going on...): https://youtu.be/91Feq0dHw28
Video by AntVenom.
Linked issues
is duplicated by 19
MC-160770
End generation is broken beyond a few hundred thousand blocks
Resolved
MC-168609
Terrain in the end not generating in certain regions
Resolved
MC-169005
The End dimension terrain is generating in stripes beyond 370720
Resolved
MC-169816
A mistake in Ender's world
Resolved
MC-178658
End 2 generation stops after a certain distance, then continues again.
Resolved
relates to 1
Attachments
Comments 44
I found that these rings get exponentially smaller, approximately generating around a radius of sqrt(x / 2) * 2^15. That would mean that up until the world border of 30,000,000 blocks, there are at least well over 6500 rings, or over 3250 void gaps. That's not counting partial rings in the world's corners. If it's of any help, I documented my findings here, along with a list of coordinates of the first 10 rings for those interested:
https://gist.github.com/Deltanic/b98d005c9025f10a67de9e966fa57ebb
Can the 370720 be added to the main text, so it doesn't appear to be an issue that happens at impossibly high distances?
Can also confirm in 1.21.5. I also found that the rings become thinner the further you go out from the central island, according to mcseedmap:

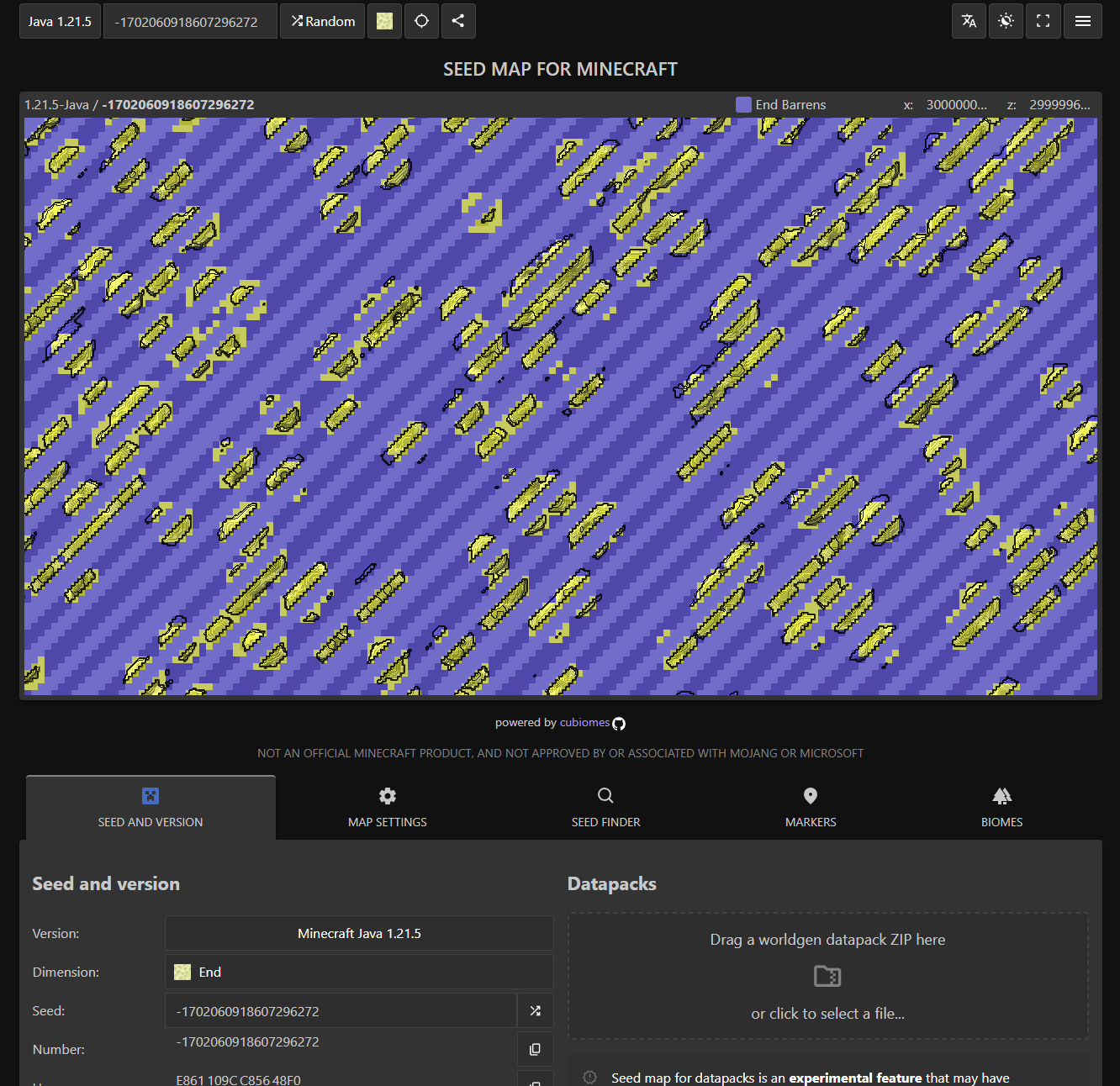

[media]The image shows the rings at coordinates x: 3 000 000 000 and z: 3 000 000 000
Here is a mathematical formula that predicts the onset of each ring on the x and z axes.
p = 2 ^ (18.5 + log(t)/(2 * log(2)))
where p is an unadjusted position and t is a parameter that are natural numbers (integers starting at 1).
When t is odd, it predicts the location where a void begins. When t is even, it predicts the location where normal terrain generation resumes.
For odd t, the true position of the void starts at:
n = floor(p/8) * 8
for even t, normal terrain resumes at:
n = ceiling(p/8) * 8
Some consequences:
The rings get progressively narrower as distance from the origin grows larger. This effect is logarithmic as shown above.
If any part of an 8×8 sub-chunk is out of range, the whole subchunk will not generate.
At sufficiently large distances, terrain will stop generating completely. This occurs when the step size of each ring reaches the size of a subchunk: 8. This will not occur within the 30 million radius of the world border.
The above formula has been shown to predict correctly the locations of the first 8 rings on the x axis with z = 0. These rings occur at 370720 (void), 524288 (normal), 642112 (void), 741456 (normal), 828968 (void), 908096 (normal), 980848 (void) and 1048576 (normal); all these coordinates were found by empirical observation.
For locations in other coordinates, p should be compared to the result of sqrt(x^2 + z^2), while being careful to avoid integer overflow.
Can confirm. Those appear to be multiple "rings" around the world center that just don't generate terrain.
Also, interestingly enough, they're not chunk borders, they're quarter chunk borders.
